iOS 动画一 CABasicAnimation和CAKeyFrameAnimation

CAAnimation -----------

动画类的继承关系。

CAAnimation
- CAAnimationGroup
- CATransition
- CAPropertyAnimtion
  - CABasicAnimation
  - CAKeyFrameAnimation

UIView和CALayer的关系

CALayer只负责渲染，手势等其它内容由UIView负责。

那么，在实际动画的过程中，CALayer的frame是怎么变化的。

- (<span>void</span>)viewDidLoad {
    [<span>super</span> viewDidLoad];
    <span>// Do any additional setup after loading the view.</span>
    <span>UIView</span> *view = [[<span>UIView</span> alloc] initWithFrame:<span>CGRectMake</span>(<span>0</span>, <span>0</span>, <span>100</span>, <span>100</span>)];
    view.backgroundColor = [<span>UIColor</span> redColor];
    [<span>self</span>.view addSubview:view];

    dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(<span>2</span> * <span>NSEC_PER_SEC</span>)), dispatch_get_main_queue(), ^{
        [<span>UIView</span> animateWithDuration:<span>5</span> animations:^{
            view.frame = <span>CGRectMake</span>(<span>500</span>, <span>200</span>, <span>100</span>, <span>100</span>);
            view.backgroundColor = [<span>UIColor</span> greenColor];
        }];

        [<span>NSTimer</span> scheduledTimerWithTimeInterval:<span>1</span> repeats:<span>YES</span> block:^(<span>NSTimer</span> * _Nonnull timer) {

            <span>NSLog</span>(<span>@"layerframe1 %@"</span>, <span>NSStringFromCGRect</span>(view.layer.frame));
            <span>NSLog</span>(<span>@"layerframe2 %@"</span>, <span>NSStringFromCGRect</span>(view.layer.presentationLayer.frame));
        }];
    });

}

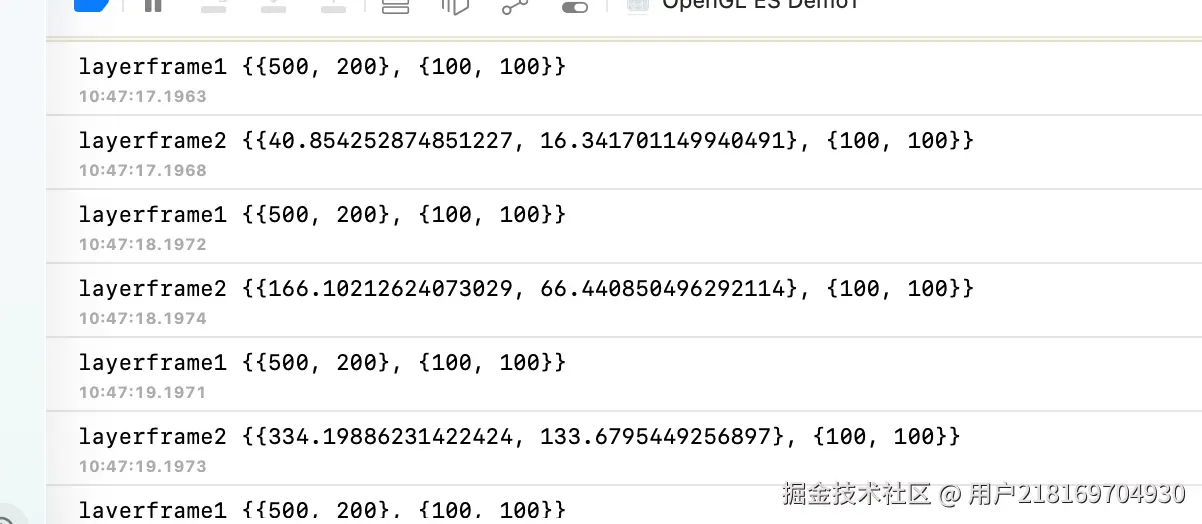

可以看到。View的Layer保留的是最终状态，动画过程是有一个叫做presentationLayer的在改变。

在 iOS 中，Core Animation 的渲染架构与 Mac OS X 高度一致，同样由三棵树构成：模型树（Layer Tree） 、呈现树（Presentation Tree） 和 渲染树（Render Tree） 。这三者协同工作，确保动画流畅、高效且与 UI 逻辑解耦。

模型树（Layer Tree）

这是开发者直接操作的图层结构，存储所有图层的“目标值”。
例如，当你设置 layer.position = CGPoint(x: 100, y: 200) 时，这个值就存储在模型树中。
模型树的结构与 UIView 的层级结构完全对应，是 UI 布局和内容管理的核心。

呈现树（Presentation Tree）

这是动画执行时的“实时状态”树，存储的是当前帧的“显示值”。
例如，当一个图层从位置 A 动画到位置 B 时，呈现树会记录每一帧的中间位置，而模型树仍保留最终目标值 B。
呈现树是只读的，可通过 layer.presentationLayer 访问，常用于获取动画过程中的实时状态（如拖拽跟随、碰撞检测等）。

渲染树（Render Tree）

这是 Core Animation 的私有内部结构，负责实际的 GPU 渲染和合成。
它不对外暴露，由系统自动管理，根据呈现树的值生成最终的像素输出。
渲染过程在独立的渲染服务进程（Render Server）中完成，与 App 主线程分离，确保 UI 响应不被阻塞。

iOS 特有的优化机制

双进程架构：App 进程只负责构建和更新图层树，真正的渲染由独立的 Render Server 进程完成，通过 IPC（进程间通信）传递数据，极大提升了性能和稳定性。
事务提交机制：所有对图层属性的修改都会被包装进 CATransaction，并在 RunLoop 即将休眠时统一提交，避免频繁触发渲染。
硬件加速：Core Animation 默认使用 GPU 进行图层合成和动画插值，只有在特定情况下（如自定义绘制、阴影、圆角等）才会触发 CPU 离屏渲染。

这种三树分离的设计，使得 iOS 能够在保持高帧率动画的同时，让开发者专注于 UI 逻辑，而无需关心底层渲染细节。

动画和触摸事件

在iOS动画过程中，手势是根据当前动画的视图区域确定的。

如果添加了动画，且设置了animation.removedOnCompletion = NO;,则还是动画的视图区域能相应事件，这个情况下，只有删除动画，才能让之前的视图区域接收触摸响应事件。

- (void)viewDidLoad {
    <span>[super viewDidLoad]</span><span>;</span>
    // Do any additional setup after loading the view.
    UIView *<span>view</span> = [[UIView alloc] initWithFrame:CGRectMake(<span>0</span>, <span>100</span>, <span>100</span>, <span>100</span>)]<span>;</span>
    <span>view.backgroundColor</span> = [UIColor redColor]<span>;</span>
    <span>view.tag</span> = <span>100</span><span>;</span>
    <span>[self.view addSubview:view]</span><span>;</span>
}

- (void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    UIView *<span>redView</span> = [self.view viewWithTag:<span>100</span>]<span>;</span>

    CABasicAnimation *<span>animation</span> = [CABasicAnimation animation]<span>;</span>
    <span>animation.keyPath</span> = @<span>"position.y"</span><span>;</span>
    <span>animation.fromValue</span> = @<span>0</span><span>;</span>
    <span>animation.toValue</span> = @<span>300</span><span>;</span>
    <span>animation.duration</span> = <span>5</span><span>;</span>
    <span>animation.beginTime</span> = CACurrentMediaTime() + <span>2</span><span>;// 延迟2秒看到效果</span>

    <span>animation.removedOnCompletion</span> = <span>NO</span><span>;</span>
    // 设置fillMode必须搭配removedOnCompletion使用
    // kCAFillModeRemoved 默认值，直接根据元素的layer属性显示
    // kCAFillModeForwards 保留最后一帧的画面
    // kCAFillModeBackwards 动画开始之前，先显示第一帧的动画。动画结束后，恢复原来的状态。需要配合延时动画才有效果
    // kCAFillModeBoth 开始动画之前，先显示第一帧，结束后，显示最后一帧
    <span>animation.fillMode</span> = kCAFillModeBoth<span>;</span>

    <span>[redView.layer addAnimation:animation forKey:@"animation1"]</span><span>;</span>

    dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(10 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
        NSLog(@"begin test touch")<span>;</span>
        <span>[redView.layer removeAnimationForKey:@"animation1"]</span><span>;</span>
    })<span>;</span>
}

CALayer的隐式动画

修改CALayer的属性，会有一个默认的动画。UIView的layer没有这个动画。

    // self.view.layer不会有隐式动画。
    // 只有添加的Layer才会有隐式动画

    CALayer *<span>layer1</span> = [CALayer layer]<span>;</span>
    <span>layer1.frame</span> = CGRectMake(<span>100</span>, <span>100</span>, <span>200</span>, <span>200</span>)<span>;</span>
    <span>layer1.backgroundColor</span> = [UIColor greenColor].CGColor<span>;</span>
    <span>[self.view.layer addSublayer:layer1]</span><span>;</span>

    dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(2 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
        <span>layer1.backgroundColor</span> = [UIColor purpleColor].CGColor<span>;</span>
        <span>layer1.frame</span> = CGRectMake(<span>0</span>, <span>300</span>, <span>300</span>, <span>300</span>)<span>;</span>
    })<span>;</span>

CAKeyFrameAnimation

CAPropertyAnimation有CABasicAnimation和CAKeyFrameAnimation这2个子类。

通过values修改动画路径。
通过path修改动画路径。

- (void)viewDidLoad {
    <span>[super viewDidLoad]</span><span>;</span>
    // Do any additional setup after loading the view.


    CALayer *<span>layer</span> = [CALayer layer]<span>;</span>
    <span>layer.backgroundColor</span> = [UIColor redColor].CGColor<span>;</span>
    <span>layer.frame</span> = CGRectMake(<span>100</span>, <span>100</span>, <span>100</span>, <span>100</span>)<span>;</span>
    <span>[self.view.layer addSublayer:layer]</span><span>;</span>

    CAKeyframeAnimation *<span>animation</span> = [CAKeyframeAnimation animation]<span>;</span>
    <span>animation.keyPath</span> =  @<span>"transform.rotation"</span><span>;</span>

    <span>[CATransaction begin]</span><span>;</span>
    <span>[CATransaction setCompletionBlock:^{
        // 当前事务（addSublayer）执行完成，layer已经渲染到屏幕
        CAKeyframeAnimation *animation = [CAKeyframeAnimation animation]</span><span>;</span>
        <span>animation.keyPath</span> = @<span>"transform.rotation"</span><span>;</span>
        CGFloat <span>p3</span> = <span>3.0</span> / <span>180.0</span> * M_PI<span>;</span>
        <span>animation.values</span> = @[@<span>0</span>,@(p3),@<span>0</span>,@(-p3),@<span>0</span>]<span>;</span>
        <span>animation.repeatCount</span> = MAXFLOAT<span>;</span>
        <span>animation.duration</span> = <span>0.3</span><span>;</span>
        <span>[layer addAnimation:animation forKey:@"animation1"]</span><span>;</span>
    }]<span>;</span>
    <span>[CATransaction commit]</span><span>;</span>
    //    dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(3 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
    //        // 这里的单位是弧度。3.14就是180度。
    //        <span>animation.values</span> = @[@<span>0</span>,@(<span>3</span> / <span>180.0</span> * M_PI),@<span>"0"</span>,@(-<span>3</span>/<span>180.0</span> * M_PI),@<span>0</span>]<span>;</span>
    ////        <span>animation.autoreverses</span> = <span>YES</span><span>;</span>
    //        <span>animation.repeatCount</span> = MAXFLOAT<span>;</span>
    //        <span>animation.duration</span> = <span>0.3</span><span>;</span>
    //        <span>[layer addAnimation:animation forKey:@"animation1"]</span><span>;</span>
    //    })<span>;</span>

}

path动画

- (void)viewDidLoad {
    <span>[super viewDidLoad]</span><span>;</span>
    // Do any additional setup after loading the <span>view.


    self.view.backgroundColor</span> = [UIColor whiteColor]<span>;</span>
    dispatch_async(dispatch_get_global_queue(0, 0), ^{
        UIImage *<span>image</span> =  [UIImage imageWithData:[NSData dataWithContentsOfURL:[NSURL URLWithString:@<span>"https://img14.360buyimg.com/pop/jfs/t1/65536/18/25365/187701/66b48584F7e4e95b8/283d6ab2b046244f.png?x-oss-process=image%2Fformat%2Cjpg%2Fresize%2Cw_500%2Fquality%2Cq_80"</span>]]]<span>;</span>
        dispatch_async(dispatch_get_main_queue(), ^{
            UIBezierPath *<span>path</span> = [UIBezierPath bezierPath]<span>;</span>
            <span>[path moveToPoint:CGPointMake(20, 300)]</span><span>;</span>
            <span>[path addCurveToPoint:CGPointMake(300, 300) controlPoint1:CGPointMake(100, 100) controlPoint2:CGPointMake(200, 400)]</span><span>;</span>


            CAShapeLayer *<span>layer1</span> = [CAShapeLayer layer]<span>;</span>
            <span>layer1.path</span> = path.CGPath<span>;</span>
            <span>layer1.fillColor</span> = nil<span>;</span>
            <span>layer1.strokeColor</span> = [UIColor blueColor].CGColor<span>;</span>
            <span>[self.view.layer addSublayer:layer1]</span><span>;</span>


            CALayer *<span>animationLayer</span> = [CALayer layer]<span>;</span>
            <span>animationLayer.contents</span> = (id )image.CGImage<span>;</span>
            <span>animationLayer.frame</span> = CGRectMake(<span>20</span>-<span>30</span>, <span>300</span>-<span>60</span>, <span>60</span>, <span>60</span>)<span>;</span>
            <span>animationLayer.anchorPoint</span> = CGPointMake(<span>0.5</span>, <span>0.9</span>)<span>;</span>
            <span>[self.view.layer addSublayer:animationLayer]</span><span>;</span>

            CAKeyframeAnimation *<span>animation</span> = [CAKeyframeAnimation animation]<span>;</span>
            <span>animation.keyPath</span> = @<span>"position"</span><span>;</span>
            <span>animation.path</span> = path.CGPath<span>;</span>
            <span>animation.duration</span> = <span>3</span><span>;</span>
            <span>animation.rotationMode</span> = kCAAnimationRotateAuto<span>;</span>
            <span>animation.repeatCount</span> = MAXFLOAT<span>;</span>

            <span>[animationLayer addAnimation:animation forKey:nil]</span><span>;;</span>
        })<span>;</span>
    })<span>;</span>
}

CAAnimationGroup

就是可以将各种动画进行组合。

核心属性

animations：这是 CAAnimationGroup 唯一的专属属性，类型是一个数组（NSArray 或 [CAAnimation]）。你需要将所有要并发执行的动画对象放入这个数组中。
时间控制属性：动画组会统一控制其内部动画的时间空间。常用的属性包括：
- duration：动画组的总持续时间。
- repeatCount：重复播放的次数。
- autoreverses：动画结束后是否反向播放回初始状态。
- timingFunction：设置动画的缓动效果（如加速、减速）。

⚠️ 关键注意事项（极易踩坑）

动画会被裁剪（Clipped） ：动画组中的动画不会被自动压缩或拉伸以适应动画组的时长。如果组内某个动画的时长超过了 CAAnimationGroup 的 duration，超出的部分将被直接剪掉（只显示前段动画）。
忽略子动画的特定属性：动画组中子动画的 delegate（代理）和 isRemovedOnCompletion（完成后是否移除）属性会被忽略。你需要在 CAAnimationGroup 本身上设置这些属性，由动画组的代理来接收动画开始和结束的消息。
保持最终状态：默认情况下，动画结束后图层会恢复到动画前的状态。为了让动画停留在结束时的状态，需要在动画组上设置 removedOnCompletion = NO 以及 fillMode = kCAFillModeForwards。

// 创建动画组
CAAnimationGroup *<span>group</span> = [CAAnimationGroup animation]<span>;</span>

// 创建平移和缩放动画
CABasicAnimation *<span>anim</span> = [CABasicAnimation animation]<span>;</span>
<span>anim.keyPath</span> = @<span>"position.y"</span><span>;</span>
<span>anim.toValue</span> = @<span>400</span><span>;</span>

CABasicAnimation *<span>scaleAnim</span> = [CABasicAnimation animation]<span>;</span>
<span>scaleAnim.keyPath</span> = @<span>"transform.scale"</span><span>;</span>
<span>scaleAnim.toValue</span> = @<span>0.5</span><span>;</span>

// 将动画加入组中
<span>group.animations</span> = @[anim, scaleAnim]<span>;</span>
<span>group.duration</span> = <span>1.0</span><span>;</span>

// 【关键】在动画组上设置填充模式，防止回弹
<span>group.removedOnCompletion</span> = <span>NO</span><span>;</span>
<span>group.fillMode</span> = kCAFillModeForwards<span>;</span>

// 添加到图层
<span>[self.redView.layer addAnimation:group forKey:nil]</span><span>;</span>

通过 CAAnimationGroup，你可以极大地简化代码逻辑，不需要为每个动画单独设置时长和完成回调，只需统一管理动画组即可实现复杂的协同动画效果。

CATransition

CATransition 是 Core Animation 中专门用于处理视图/图层内容切换（如换图、切换子控制器）的过渡动画类。

基础用法

CATransition 通常添加到容器视图（如 UIImageView 或父 UIView）的 layer 上。当容器内的内容发生变化时，系统会自动执行过渡动画。


- (void)viewDidLoad {
    <span>[super viewDidLoad]</span><span>;</span>
    // Do any additional setup after loading the <span>view.
    self.view.backgroundColor</span> = [UIColor redColor]<span>;</span>


    dispatch_group_t <span>group</span> = dispatch_group_create()<span>;</span>
    dispatch_queue_t <span>queue</span> = dispatch_queue_create(<span>0</span>,
                                                   DISPATCH_QUEUE_CONCURRENT)<span>;</span>

    __block NSData *image1<span>;</span>
    __block NSData *image2<span>;</span>
    dispatch_group_async(group,
 queue,
                         ^{
        <span>image1</span> = [NSData dataWithContentsOfURL:[NSURL URLWithString:@<span>"https://img1.baidu.com/it/u=786478812,1495962150&fm=253&app=120&f=JPEG?w=800&h=1422"</span>]]<span>;</span>
    })<span>;</span>
    dispatch_group_async(group,
 queue,
                         ^{
        <span>image2</span> = [NSData dataWithContentsOfURL:[NSURL URLWithString:@<span>"https://b0.bdstatic.com/ugc/nZYH1k449ZTPOGj4-Mkb_we832996869186f05c0af4661f2cf074c.jpg"</span>]]<span>;;</span>
    })<span>;</span>
    dispatch_group_notify(group,
 dispatch_get_main_queue(),
 ^{
        // 1. 创建动画对象
        CATransition *<span>transition</span> = [CATransition animation]<span>;</span>

        // 2. 设置动画类型 (核心)
        // 公开类型: kCATransitionFade, kCATransitionMoveIn, kCATransitionPush, kCATransitionReveal
        // 私有类型(截图中的用法): @"pageCurl", @"pageUnCurl", @"rippleEffect", @"suckEffect"
        <span>transition.type</span> = kCATransitionMoveIn<span>;</span>

        // 3. 设置动画方向 (可选)
        // kCATransitionFromLeft, kCATransitionFromRight, kCATransitionFromTop, kCATransitionFromBottom
        <span>transition.subtype</span> = kCATransitionFromRight<span>;</span>

        // 4. 设置时长
        <span>transition.duration</span> = <span>3</span><span>;</span>
        <span>transition.delegate</span> = self<span>;</span>

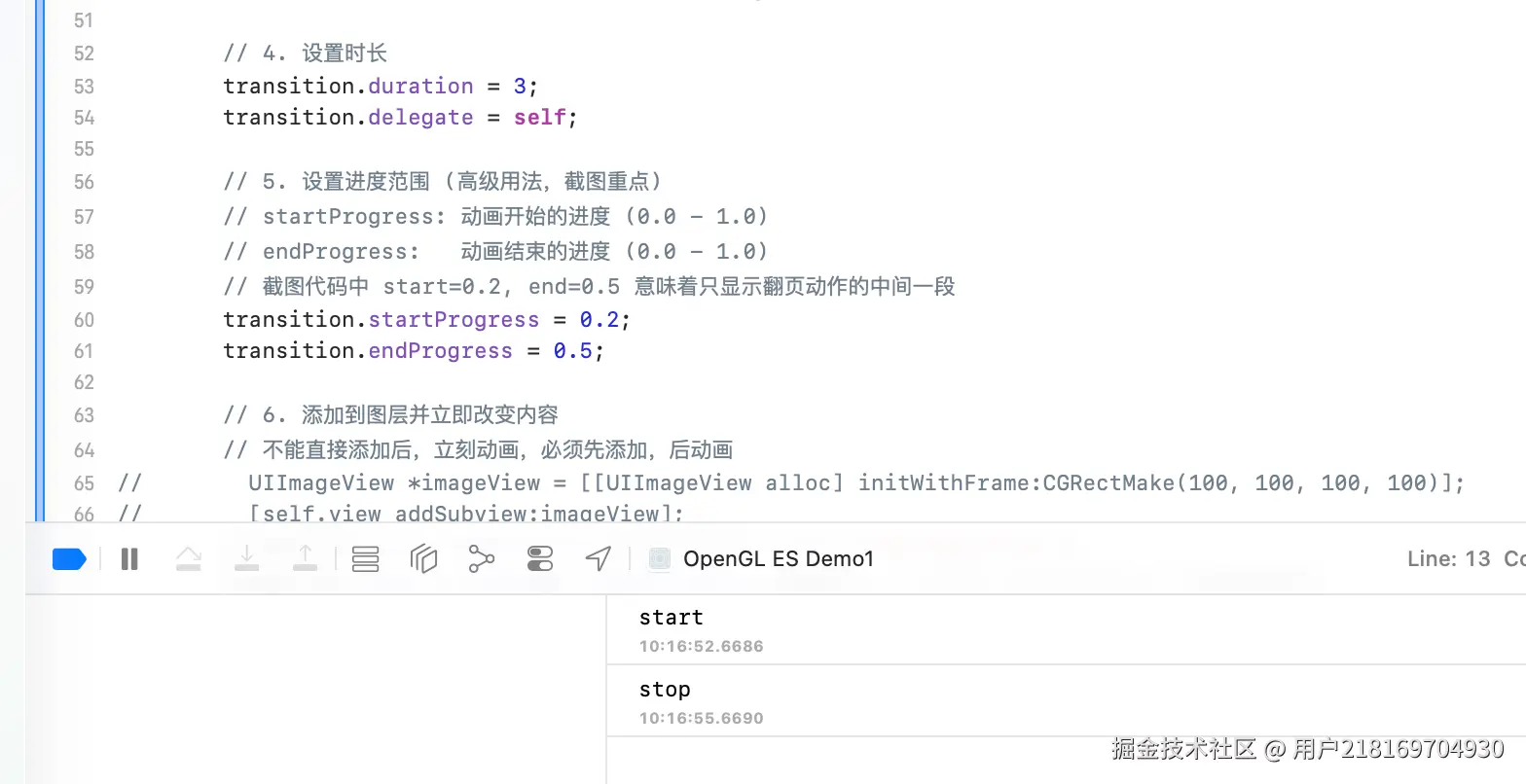

        // 5. 设置进度范围 (高级用法，截图重点)
        // startProgress: 动画开始的进度 (0.0 - 1.0)
        // endProgress:   动画结束的进度 (0.0 - 1.0)
        // 截图代码中 <span>start</span>=<span>0.2</span>, end=<span>0.5</span> 意味着只显示翻页动作的中间一段
        <span>transition.startProgress</span> = <span>0.2</span><span>;</span>
        <span>transition.endProgress</span> = <span>0.5</span><span>;</span>

        // 6. 添加到图层并立即改变内容,和先后顺序无关。下面集中方式都会动画效果。
        //
        //        UIImageView *<span>imageView</span> = [[UIImageView alloc] initWithFrame:CGRectMake(<span>100</span>, <span>100</span>, <span>100</span>, <span>100</span>)]<span>;</span>
        //        <span>[imageView.layer addAnimation:transition forKey:@"myTransition"]</span><span>;</span>
        //        <span>imageView.image</span> = [UIImage imageWithData:image1]<span>;</span>
        //        <span>[self.view addSubview:imageView]</span><span>;</span>

        //
        //        UIImageView *<span>imageView</span> = [[UIImageView alloc] initWithFrame:CGRectMake(<span>100</span>, <span>100</span>, <span>100</span>, <span>100</span>)]<span>;</span>
        //        <span>[self.view addSubview:imageView]</span><span>;</span>
        //        <span>[imageView.layer addAnimation:transition forKey:@"myTransition"]</span><span>;</span>
        //        <span>imageView.image</span> = [UIImage imageWithData:image1]<span>; // 必须在 addAnimation 之后或同时执行</span>

        UIImageView *<span>imageView</span> = [[UIImageView alloc] initWithFrame:CGRectMake(<span>100</span>,
                                                                               <span>100</span>,
                                                                               <span>100</span>,
                                                                               <span>100</span>)]<span>;</span>
        <span>imageView.image</span> = [UIImage imageWithData:image1]<span>; // 必须在 addAnimation 之后或同时执行</span>
        <span>[self.view addSubview:imageView]</span><span>;</span>

        <span>[imageView.layer addAnimation:transition forKey:@"myTransition"]</span><span>;</span>


        dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(5 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
            // 这样没有动画效果。
            <span>imageView.image</span> = [UIImage imageWithData:image2]<span>;</span>
        })<span>;</span>
    })<span>;</span>
}

- (void)animationDidStart:(CAAnimation *)anim{
    NSLog(@"start")<span>;</span>
}
- (void)animationDidStop:(CAAnimation *)anim finished:(BOOL)flag{
    NSLog(@"stop")<span>;</span>
}

动画设置了3秒，从start到结束就是3秒。不会因为从0.2到0.5就减少动画时间。

上面代码会阻塞至少2个线程。只是为了演示用。实际要用异步的方式。

    dispatch_group_t <span>group</span> = dispatch_group_create()<span>;</span>
    dispatch_queue_t <span>queue</span> = dispatch_queue_create(<span>0</span>,
                                                   DISPATCH_QUEUE_CONCURRENT)<span>;</span>

    __block NSData *image1<span>;</span>
    __block NSData *image2<span>;</span>

    dispatch_group_enter(group)<span>;</span>
    dispatch_async(queue,
 ^{
        NSString *<span>imageURL</span> = @<span>"https://img1.baidu.com/it/u=786478812,1495962150&fm=253&app=120&f=JPEG?w=800&h=1422"</span><span>;</span>
        <span>[[NSURLSession sharedSession]</span> dataTaskWithURL:<span>[NSURL URLWithString:imageURL]</span> completionHandler:^(NSData * _Nullable data,
                                                                                                         NSURLResponse * _Nullable response,
                                                                                                         NSError * _Nullable error) {
            <span>image1</span> = data          <span>;</span>
            dispatch_group_leave(group)<span>;</span>
        }]<span>;</span>
    })<span>;</span>
    dispatch_group_enter(group)<span>;</span>
    dispatch_async(queue,
 ^{
        NSString *<span>imageURL</span> = @<span>"https://b0.bdstatic.com/ugc/nZYH1k449ZTPOGj4-Mkb_we832996869186f05c0af4661f2cf074c.jpg"</span><span>;</span>
        <span>[[NSURLSession sharedSession]</span> dataTaskWithURL:<span>[NSURL URLWithString:imageURL]</span> completionHandler:^(NSData * _Nullable data,
                                                                                                         NSURLResponse * _Nullable response,
                                                                                                         NSError * _Nullable error) {
            <span>image1</span> = data          <span>;</span>
            dispatch_group_leave(group)<span>;</span>
        }]<span>;</span>
    })<span>;</span>

    dispatch_group_notify(group,
                          dispatch_get_main_queue(),
                          ^{

2. 关键属性解析

属性	类型	说明
`type`	NSString	动画效果名称。常用公开常量有 `kCATransitionFade` (淡入淡出)、`kCATransitionPush` (推挤)。
`subtype`	NSString	动画方向。仅对部分 type 有效（如 Push, MoveIn）。
`duration`	CFTimeInterval	动画持续时间。
`startProgress`	float	起始进度。默认为 0.0。设为 0.2 表示跳过前 20% 的动画过程。
`endProgress`	float	结束进度。默认为 1.0。设为 0.5 表示只播放到一半就强制结束。
`timingFunction`	CAMediaTimingFunction	节奏曲线，如 `kCAMediaTimingFunctionEaseInEaseOut`。

3. 避坑指南 (重要)

内容变更时机：addAnimation 只是告诉图层“准备做个动画”，真正的视觉变化依赖于你随后修改的属性（如 image、subviews）。如果只加动画不改内容，什么都不会发生。
私有 API 风险：截图中使用的 @"pageCurl" 等字符串属于 Apple 未公开的私有 API。虽然在很多 App 中能用且能过审，但理论上存在被拒风险。如果是上架应用，建议优先使用公开的 kCATransitionFade 或自定义转场。
start/endProgress 的妙用：这两个属性非常适合做交互式转场（Interactive Transition）。比如配合手势滑动，根据滑动的百分比动态修改这两个值，就能实现“跟手”的翻页效果。

常用动画类型速查表

公开 (安全)
- kCATransitionFade: 交叉淡入淡出。
- kCATransitionPush: 新视图推入，旧视图移出。
- kCATransitionMoveIn: 新视图覆盖在旧视图之上移入。
- kCATransitionReveal: 旧视图移走，露出下方的新视图。
私有 (炫酷但有风险)
- @"pageCurl" / @"pageUnCurl": 翻页/合页。
- @"rippleEffect": 水滴波纹。
- @"suckEffect": 像被吸尘器吸走一样缩小消失。
- @"oglFlip": 垂直翻转。

iOS 动画 一 CABasicAnimation和CAKeyFrameAnimation
