RuoYi + RAGFlow 搭建私有化知识库完整集成实践（二）

一、RAGFlow 私有化部署

1.1 硬件要求

以实际开发环境为例：CPU 10 核 / 内存 32G / 无 GPU（笔记本），完全可运行。

关键认知：RAG 方案不做模型训练与微调，算力消耗集中在"文档解析 + 向量化"的一次性过程，日常问答阶段只做检索 + 生成，因此对硬件要求远低于训练/微调方案，只不过经过实践，CPU模式下的文档切片解析速度确实一般，正式环境需要GPU加速。

1.2 Docker Compose 部署ragFlow

<span># 克隆项目</span>
git <span>clone</span> https://github.com/infiniflow/ragflow.git
<span>cd</span> ragflow/docker

<span># 配置环境变量</span>
<span>cp</span> .env.example .<span>env</span>
vim .<span>env</span>

<span># 启动（首次拉取镜像，v0.27.0 建议锁定镜像 tag）</span>
docker compose up -d

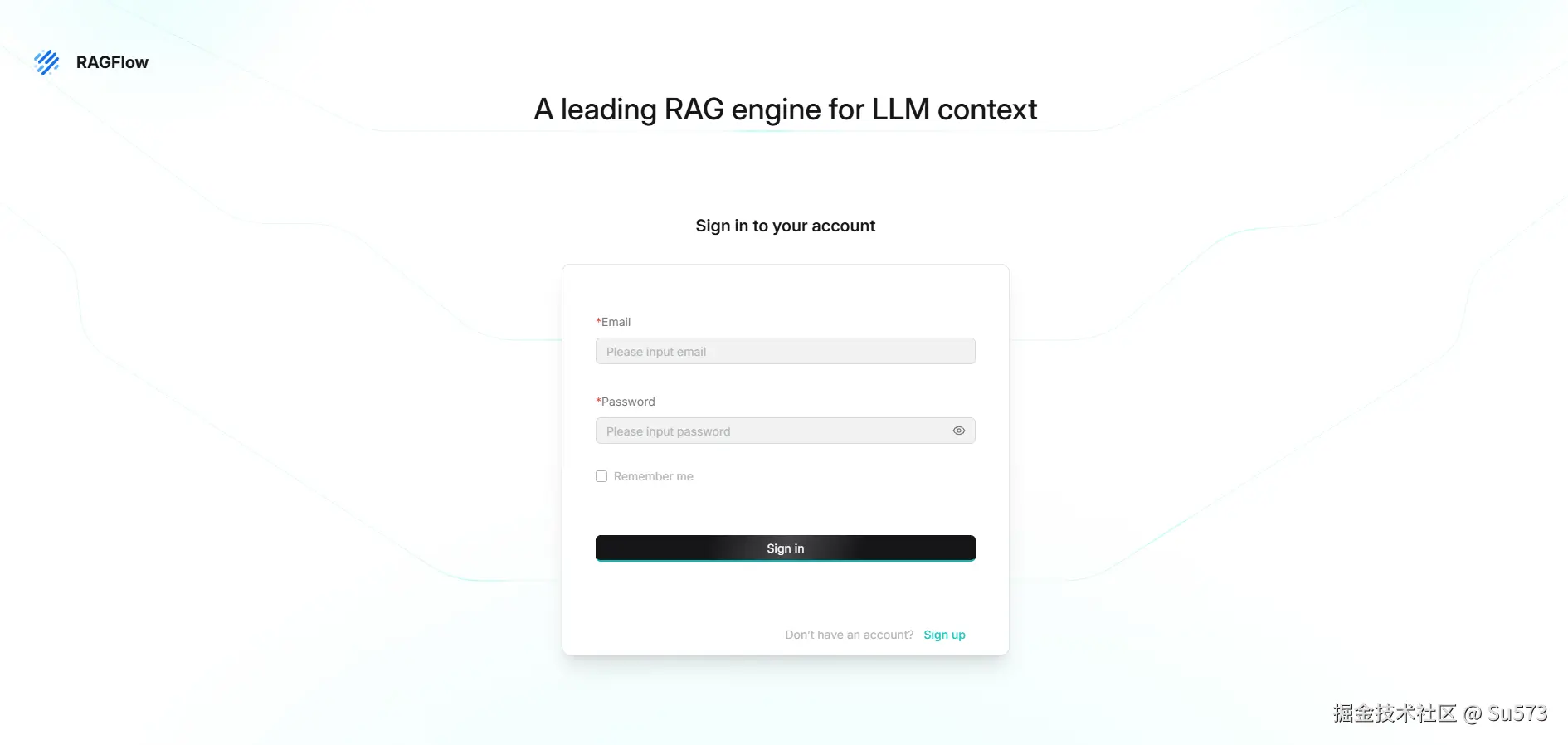

ragFlow启用以后登录页如下：

1.3 模型配置（开发环境我用的是硅基流动 API）

RAGFlow 支持配置 OpenAI 兼容的模型供应商。开发阶段选择硅基流动（SiliconFlow）线上 API，主要原因是简化本地环境、提升开发效率——不需要在笔记本上部署嵌入模型和对话模型，即可快速验证业务逻辑。

1.4 模型选择

三个模型各司其职：

二、若依侧：8 个功能模块的设计

2.1 模块菜单结构

AI知识库问答
├── 模型管理          <span># 三类模型统一维护</span>
├── 知识库管理        <span># 知识库 CRUD + 开放范围</span>
├── 知识库文档        <span># 文档上传/解析/状态</span>
├── RAG提示词         <span># 助手系统提示词模板</span>
├── 对话助手管理      <span># 助手 = 知识库 + 模型 + 提示词</span>
├── RAG会话明细       <span># 每次问答的详细记录</span>
├── 用户会话管理      <span># 按用户维度管理会话</span>
└── AI智能问答        <span># 最终用户工作台</span>

2.2 模型管理

数据表 kb_model：

界面提供**"验证"按钮**：点击后实际调用一次模型 API（向量化模型跑一次 embedding、大模型跑一次补全），把连通性和响应时间直接反馈到界面上，避免配错模型到问答环节才发现。

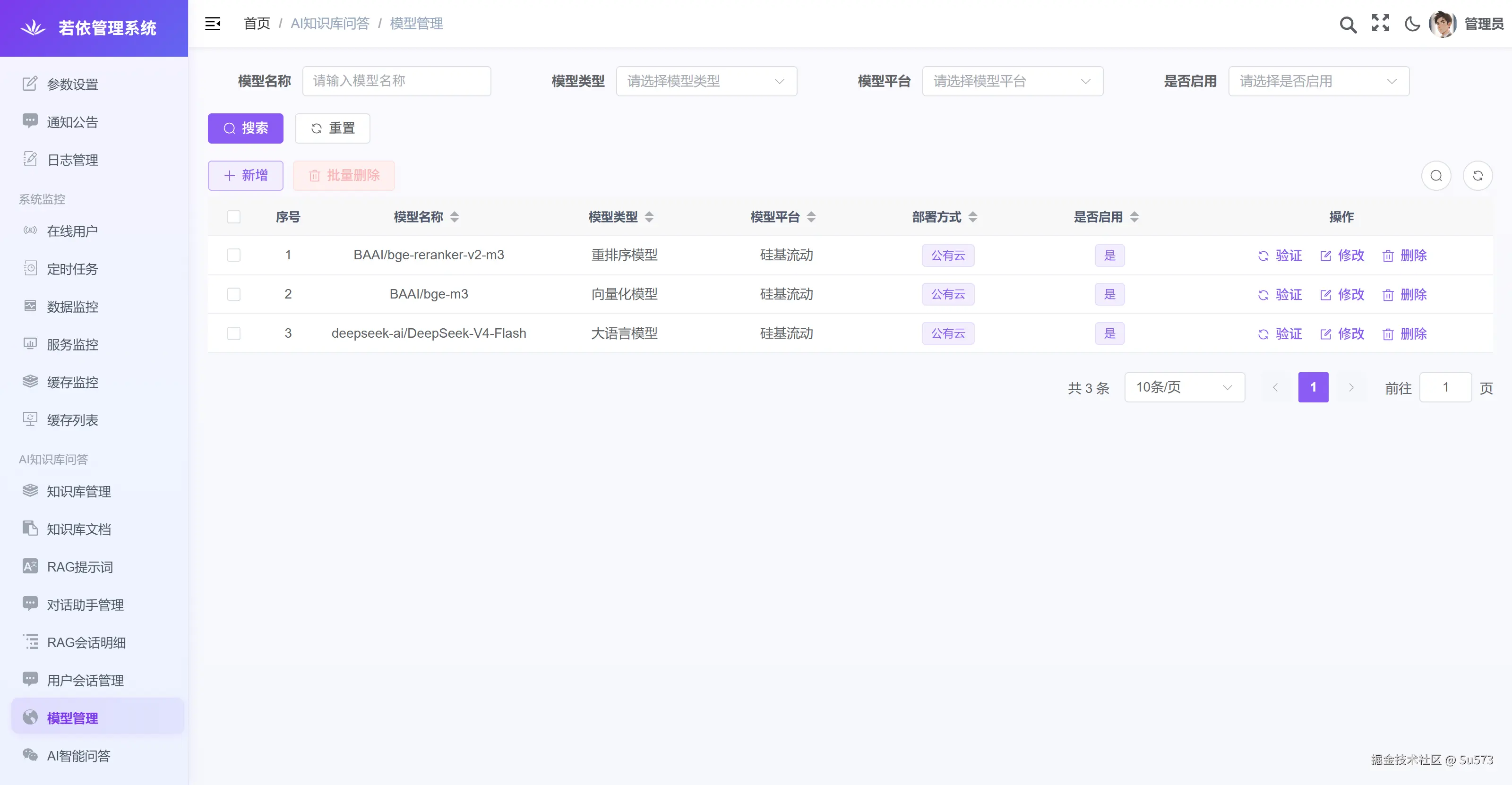

——三类模型（重排序/向量化/大语言）各维护一条记录，全部启用，平台为"硅基流动"，部署方式"公有云"，每条记录支持验证/修改/删除。

2.3 知识库管理 + 开放范围（核心权限设计）

整个 AI 模块共 10 张业务表，统一 rag_ 前缀，与若依 sys_ 体系隔离，方便单独备份与维护：

通用设计规范（所有主表统一遵守）：

• 带 del_flag 逻辑删除、is_enable 启用开关、create_by / create_time / update_by / update_time 审计字段，与若依 BaseEntity 对齐；
• 对接 RAGFlow 的表（知识库 / 文档 / 助手 / 会话）主键一律用 varchar(64) 直接存 RAGFlow 侧 ID，避免本地自增主键与远端 ID 的映射表；
• 状态类字段用数字或短字符串枚举，注释里写明含义（如 parse_status：0 待解析 / 1 解析中 / 2 成功 / 3 失败）。

2.4 模型管理

数据表 rag_llm_model（RAG大模型配置）：

界面提供**"验证"按钮**：点击后实际调用一次模型 API（向量化模型跑一次 embedding、大模型跑一次补全），把连通性和响应时间直接反馈到界面上，本质是参考ragFlow的模型验证功能。

——向量化 / 大语言模型各维护一条记录，全部启用，平台为"硅基流动"，部署方式"公有云"，每条记录支持验证/修改/删除。

2.5 知识库管理 + 开放范围（核心权限设计）

数据表 rag_knowledge_base（RAG知识库管理）：

开放范围是知识库权限的核心，创建知识库时直接配置：

权限明细用一张授权表 rag_knowledge_base_auth（知识库权限表）实现，通过 auth_subject_type 区分主体类型——相比"每个类型一张关联表"，新增 / 取消授权只插删一条记录，后端只写一套代码：

唯一索引 uk_resource_subject(resource_id, auth_subject_type, auth_subject_id)：同一知识库对同一主体只允许一条授权，天然防重复。

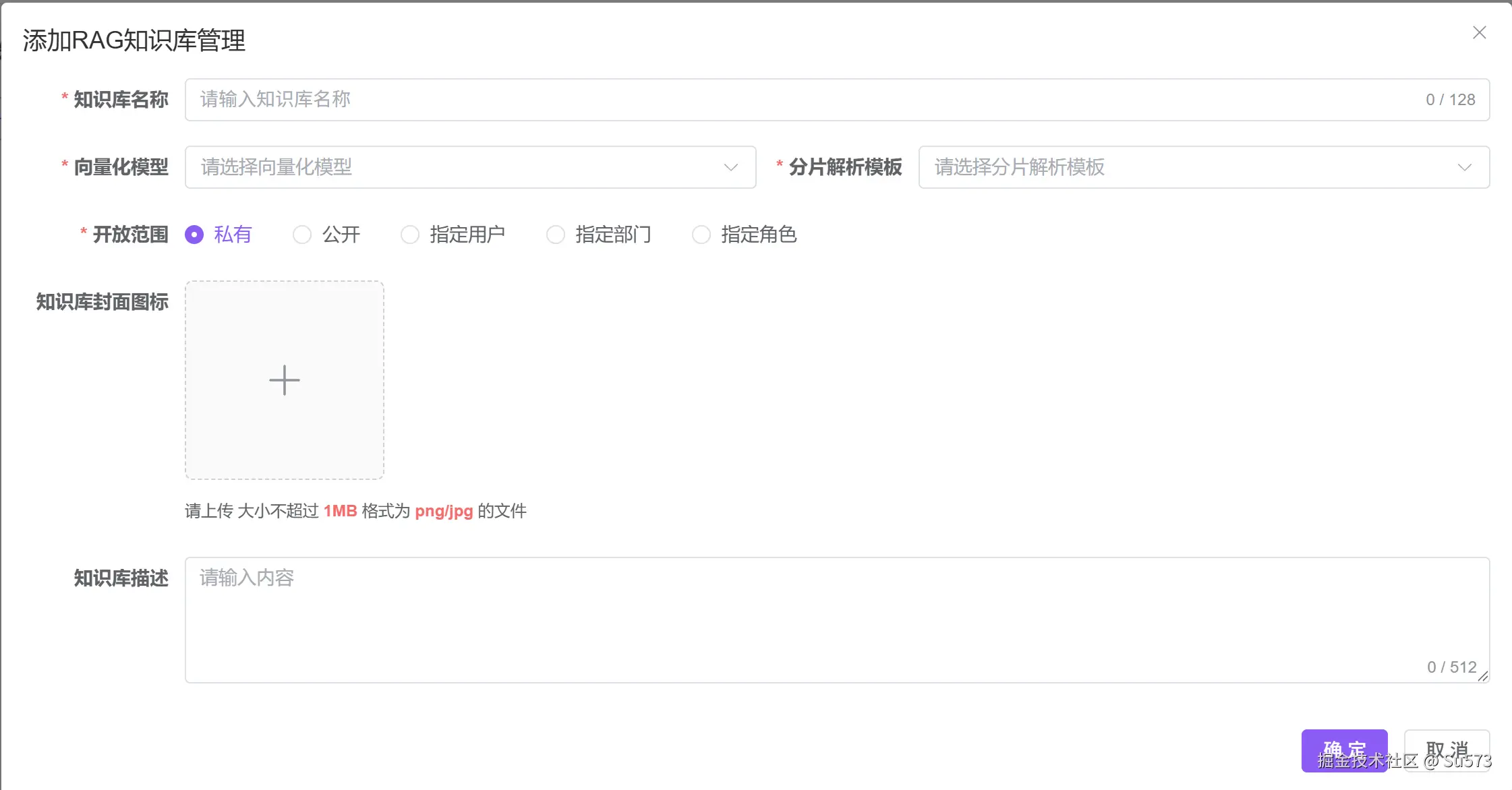

——新增知识库表单：知识库名称、向量化模型、分片解析模板、开放范围（私有/公开/指定用户/指定部门/指定角色单选）、封面、描述。

2.6 知识库文档管理

数据表 rag_document（RAG知识库文档）：

这里有两个关键点：

• 主键直接用 RAGFlow 返回的文档 ID，省掉本地 ID 与远端 ID 的映射表；
• 增加 status_msg（失败原因留痕）、page_count（PDF 页数）、chunk_count（分片冗余）等运维字段。

文档上传后进入解析任务队列 rag_parse_task（RAG文档解析任务队列）：

上传接口只做两件事：落库 rag_document + 插入一条 rag_parse_task 任务，立即返回；后端定时任务（@Scheduled）轮询 status = '0' 的任务，逐个调用 RAGFlow 解析接口，完成后回写 rag_document.parse_status / vector_status。异步削峰，还有一个同时大批量上传、解析文档的问题，我也做了处理，后面单独详细讲一下。

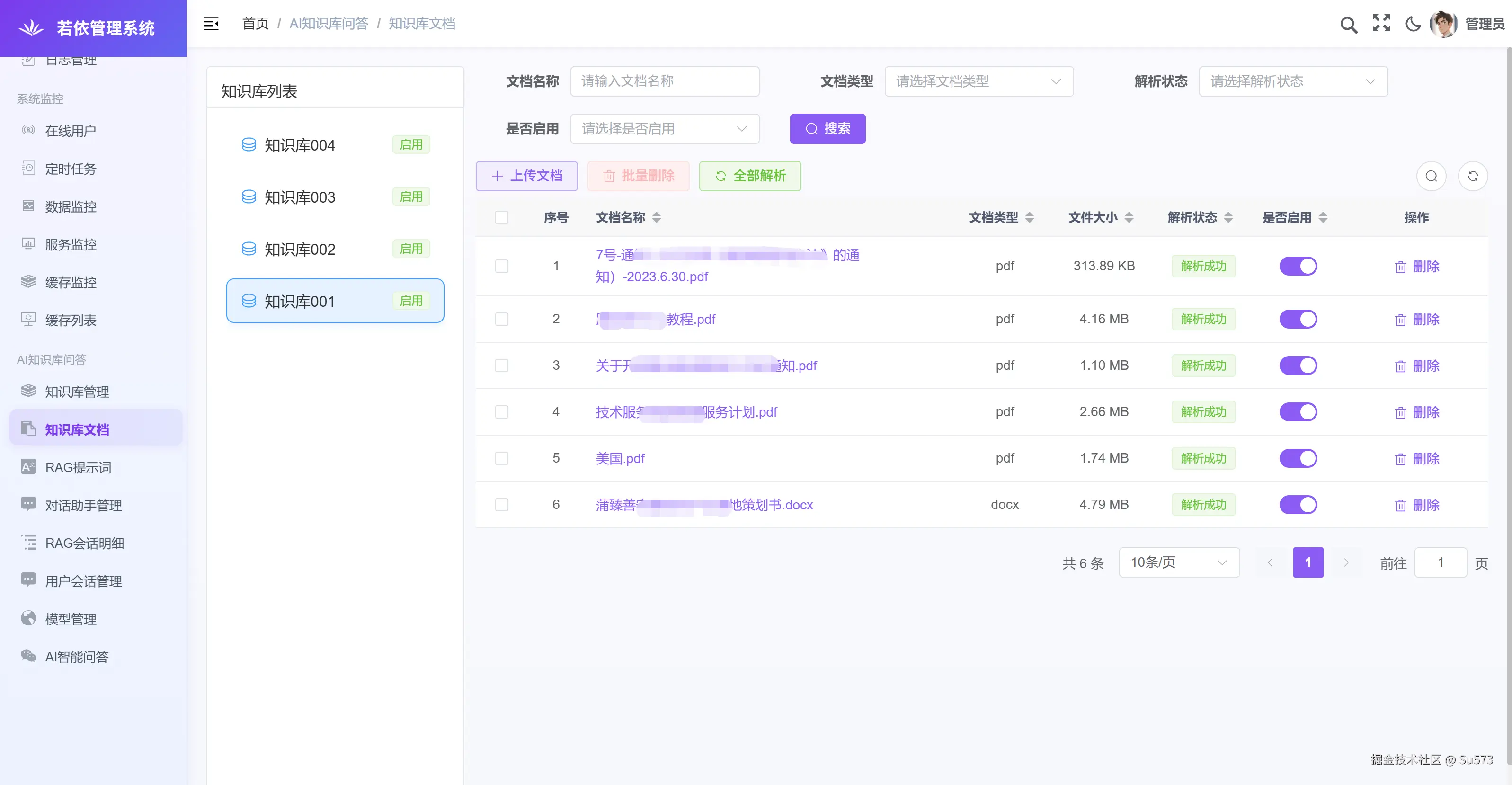

页面提供：上传文档 / 批量删除 / 全部解析三个核心操作，左侧为知识库列表（切换知识库查看各自文档），右侧为文档表格，实时展示解析状态。

——知识库 001 下 6 份文档，pdf/docx 混合，全部"解析成功"，支持按文档名称/类型/解析状态/是否启用筛选，禁用的文档不参与rag检索。

2.7 RAG 提示词

数据表 rag_prompt_template（RAG提示词模板表）：

维护助手的系统提示词模板，比如限定回答范围、要求引用来源、禁止编造等。提示词作为独立模块管理，方便运营人员随时调整而不用改代码；rag_chat_bot.prompt_template_id 引用本表 id，一个模板可被多个助手复用。

2.8 对话助手管理

数据表 rag_chat_bot（RAG对话助手配置）：

助手 = 知识库集合 + 大模型 + 提示词 + 检索参数的绑定关系。这一块有三个关键点：

• 一个助手可绑定多个知识库（kb_code_list 存 JSON 数组），问答时多库联合检索；
• 检索参数入库（top_n / similarity_threshold / rerank_enable / refine_multiturn / temperature / max_tokens），前端可调，后端组装 RAGFlow 请求体时透传，为了降低使用门槛，最初的设计是做一个默认最优配置，将对话助手的大量配置隐藏，让用户能以极低的学习成本来使用这套知识库检索系统；
• 助手 ID 即 RAGFlow chat_assistant ID，本地零映射。

业务上可以建多个助手：制度问答助手、技术文档助手、档案查询助手……每个助手面向不同知识库和场景。助手卡片在首页的排序由 rag_chat_bot_user_sort（RAG对话助手用户排序表）维护：

唯一索引 uk_user_bot(user_id, chat_bot_id)：每用户对同一助手只有一条排序记录，前端拖拽调整时 upsert，实现每用户独立卡片顺序。

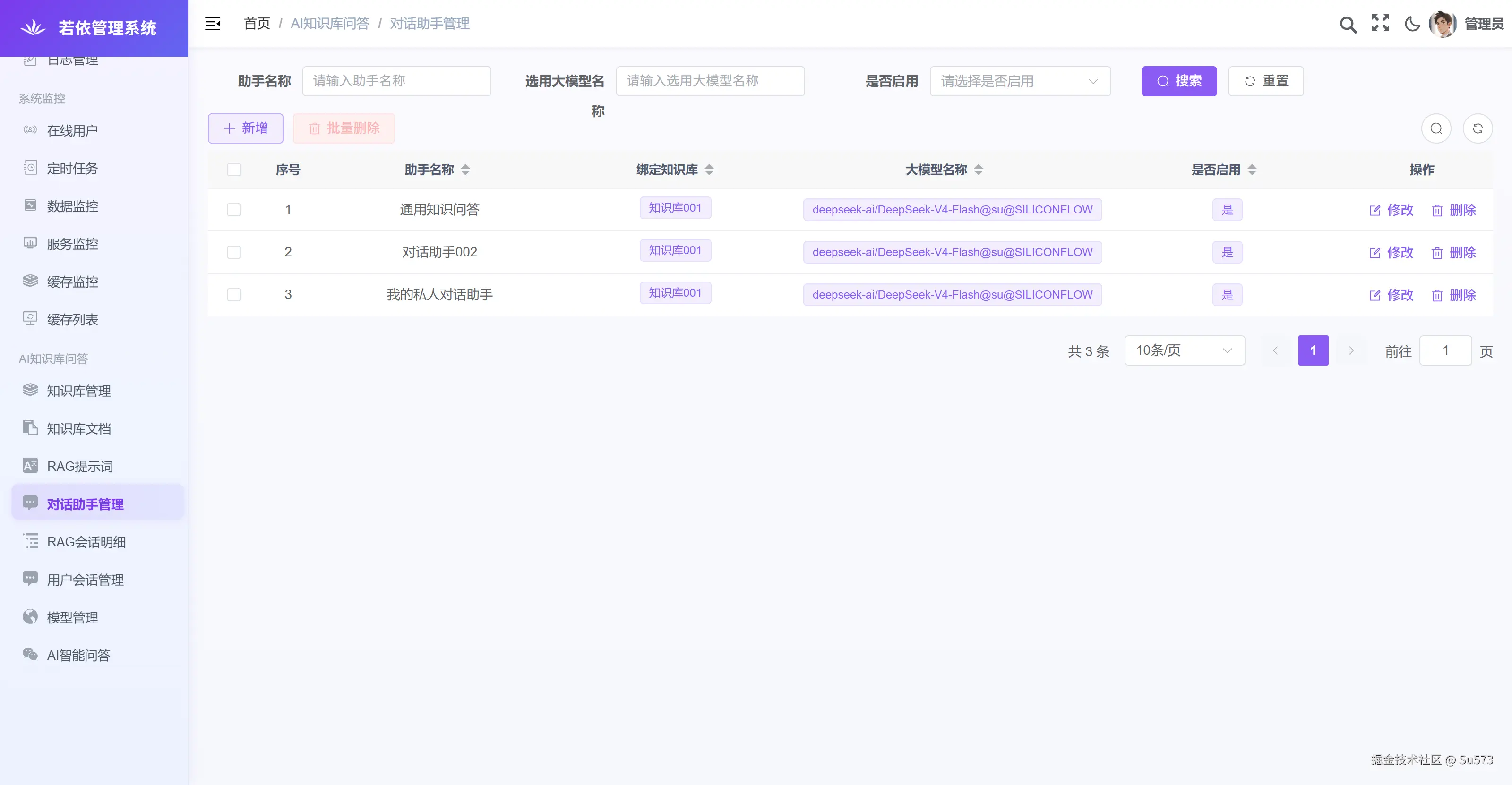

——3 个助手（通用知识问答/对话助手002/我的私人对话助手），均绑定知识库001、使用 deepseek-ai/DeepSeek-V4-Flash。

2.9 RAG 会话明细 + 用户会话管理

数据表 rag_conversation（RAG用户会话表）：

数据表 rag_conversation_msg（RAG会话消息明细）：

设计要点：

• 会话主键直接用 RAGFlow 的 conversation_id，若依侧与 RAGFlow 侧一一对应，多轮续聊时直接透传，无映射成本；
• 查询按 conv_id 走索引（idx_conv_id），会话列表按 user_id + del_flag 过滤。

这两个模块的价值：可审计、可复盘。每次问答的问题、答案、引用来源等都留痕，方便排查问题或扩展统计功能。

三、Java 后端对接 RAGFlow API

其实后端的设计思路也很容易理解，首先在配置文件配置ragFlow的相关信息，然后写一个对接ragFlow API接口的工具类，然后按需调用就行了。

3.1 配置

ragflow:
  base-url: http://127.0.0.1:90
  api-key: ragflow-2rl-xxxxGoqxxxp0Bqa-xxxxx-xxxx
  <span>#sse超时，毫秒</span>
  sse-timeout: 600000

3.2 核心API工具类（知识库增删改、文档增删解析、创建对话助手等）

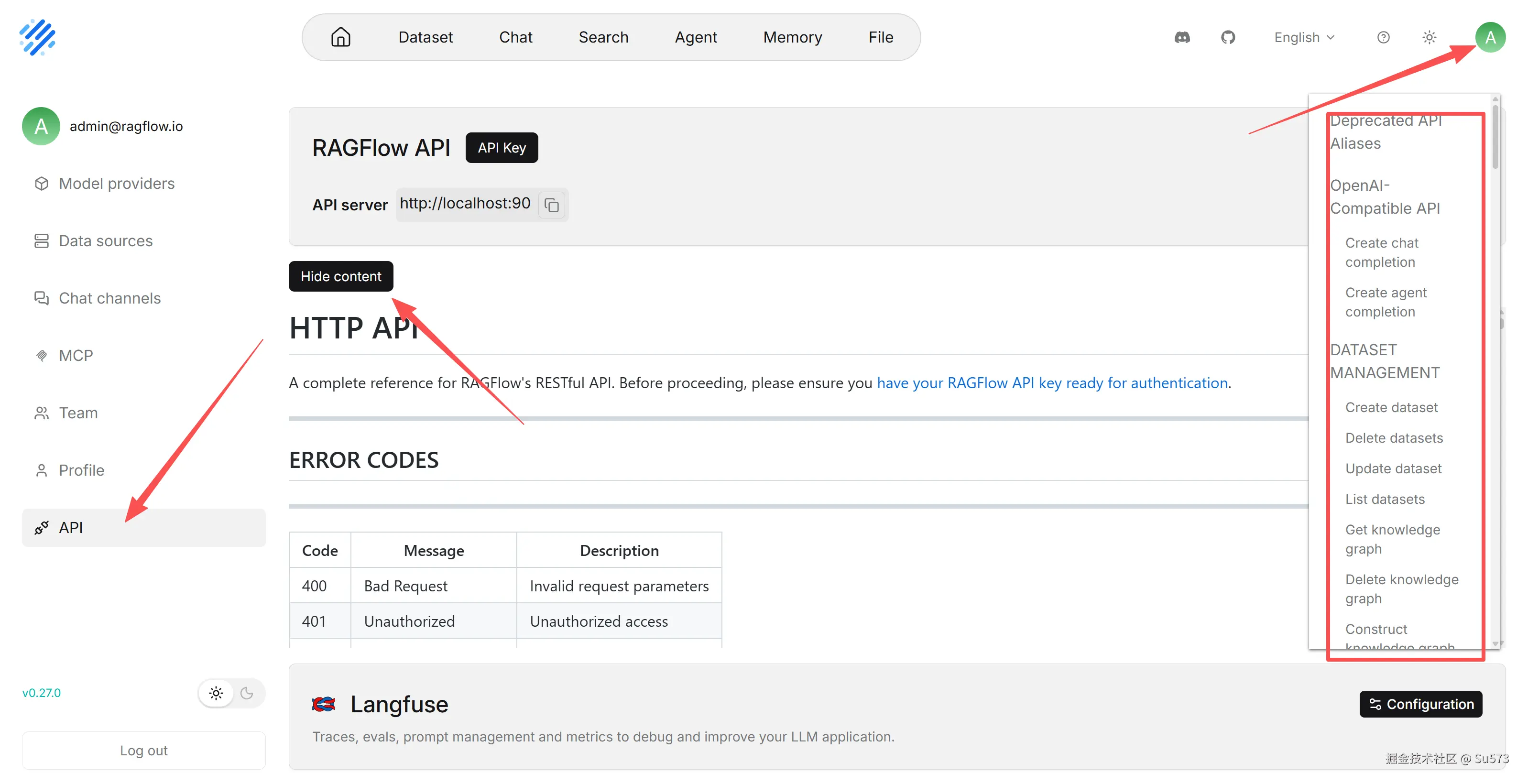

这个类其实本质就是把ragFlow的API调用都落实到java类中，完整的API登录ragFlow都可以看到,如下代码可供参考。

package com.ruoyi.rag.controller;

import com.alibaba.fastjson2.JSON;
import com.alibaba.fastjson2.JSONArray;
import com.alibaba.fastjson2.JSONObject;
import com.ruoyi.rag.domain.*;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.core.io.ByteArrayResource;
import org.springframework.core.io.FileSystemResource;
import org.springframework.http.*;
import org.springframework.stereotype.Component;
import org.springframework.util.LinkedMultiValueMap;
import org.springframework.util.MultiValueMap;
import org.springframework.web.client.RestTemplate;
import org.springframework.web.multipart.MultipartFile;

import java.io.BufferedReader;
import java.io.File;
import java.io.InputStreamReader;
import java.net.URLEncoder;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Objects;

@Component
public class RagFlowApiClient {

    @Value(<span>"<span>${ragflow.base-url}</span>"</span>)
    private String baseUrl;
    @Value(<span>"<span>${ragflow.api-key}</span>"</span>)
    private String apiKey;

    private final RestTemplate restTemplate = new RestTemplate();

    private HttpHeaders <span><span>getHeader</span></span>() {
        HttpHeaders headers = new HttpHeaders();
        headers.set(<span>"Authorization"</span>, <span>"Bearer "</span> + apiKey);
        headers.setContentType(MediaType.APPLICATION_JSON);
        <span>return</span> headers;
    }

    /**
     * 获取multipart表单请求头，用于文件上传/web抓取
     */
    private HttpHeaders <span><span>getMultipartHeader</span></span>() {
        HttpHeaders headers = new HttpHeaders();
        headers.set(<span>"Authorization"</span>, <span>"Bearer "</span> + apiKey);
        headers.setContentType(MediaType.MULTIPART_FORM_DATA);
        <span>return</span> headers;
    }

    /**
     * 创建知识库
     * @param ragKnowledgeBase 知识库名称
     * @<span>return</span> ragflow kb_id
     */
    public String createKnowledgeBase(RagKnowledgeBase ragKnowledgeBase) {
        String url = baseUrl + <span>"/api/v1/datasets"</span>;
        Map<String,Object> body = new HashMap<>();
        body.put(<span>"name"</span>, ragKnowledgeBase.getKbName());
        body.put(<span>"description"</span>, ragKnowledgeBase.getKbDesc());
        body.put(<span>"embedding_model"</span>, ragKnowledgeBase.getEmbeddingModel());
        body.put(<span>"chunk_method"</span>, ragKnowledgeBase.getChunkMethod());

        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body),getHeader());
        ResponseEntity<String> resp = restTemplate.postForEntity(url,entity,String.class);
        JSONObject json = JSON.parseObject(resp.getBody());

        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"创建知识库失败："</span> + Objects.toString(msg,<span>"未知错误"</span>));
        }
        JSONObject data = json.getJSONObject(<span>"data"</span>);
        <span>return</span> data.getString(<span>"id"</span>);
    }


    /**
     * 删除单个dataset
     * @param datasetId ragflow dataset_id
     */
    public void deleteSingleDataset(String datasetId) {
        <span>if</span>(datasetId == null || datasetId.isBlank()){
            <span>return</span>;
        }
        String url = baseUrl + <span>"/api/v1/datasets"</span>;
        Map<String,Object> body = new HashMap<>();
        // 就算删一个，也要包进数组
        body.put(<span>"ids"</span>, List.of(datasetId));

        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(
                url,
                HttpMethod.DELETE,
                entity,
                String.class
        );
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"删除知识库失败："</span> + Objects.toString(msg,<span>"未知错误"</span>));
        }
    }

    //==================== 文档上传相关 ====================

    /**
     * <span>type</span>=<span>local</span> 上传本地文件（File对象，支持多文件）
     * @param datasetId 知识库<span>id</span>
     * @param files 文件列表
     * @<span>return</span> 返回新建文档<span>id</span>集合
     */
    public List<String> uploadLocalDocuments(String datasetId, List<File> files) {
        <span>if</span>(datasetId == null || datasetId.isBlank()){
            throw new IllegalArgumentException(<span>"datasetId不能为空"</span>);
        }
        <span>if</span>(files == null || files.isEmpty()){
            throw new IllegalArgumentException(<span>"待上传文件不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/documents"</span>;

        MultiValueMap<String, Object> form = new LinkedMultiValueMap<>();
        <span>for</span> (File file : files) {
            FileSystemResource resource = new FileSystemResource(file);
            form.add(<span>"file"</span>, resource);
        }

        HttpEntity<MultiValueMap<String, Object>> request = new HttpEntity<>(form, getMultipartHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.POST, request, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());

        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow上传文档失败："</span> + Objects.toString(msg,<span>"未知错误"</span>));
        }
        JSONArray dataArray = json.getJSONArray(<span>"data"</span>);
        List<String> docIds = new ArrayList<>();
        <span>for</span> (int i = 0; i < dataArray.size(); i++) {
            JSONObject item = dataArray.getJSONObject(i);
            docIds.add(item.getString(<span>"id"</span>));
        }
        <span>return</span> docIds;
    }

    /**
     * <span>type</span>=<span>local</span> 适配前端 MultipartFile 上传
     * @param datasetId 知识库<span>id</span>
     * @param multipartFiles spring接收的文件
     * @<span>return</span> 文档<span>id</span>列表
     */
    public List<RagDocument> uploadLocalMultipartFiles(String datasetId, List<MultipartFile> multipartFiles) {
        <span>if</span>(StringUtils.isBlank(datasetId)){
            throw new IllegalArgumentException(<span>"datasetId不能为空"</span>);
        }
        <span>if</span>(multipartFiles == null || multipartFiles.isEmpty()){
            throw new IllegalArgumentException(<span>"待上传文件不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/documents"</span>;

        MultiValueMap<String, Object> form = new LinkedMultiValueMap<>();
        <span>for</span> (MultipartFile mf : multipartFiles) {
            ByteArrayResource resource;
            try {
                resource = new ByteArrayResource(mf.getBytes()){
                    @Override
                    public String <span><span>getFilename</span></span>() {
                        <span>return</span> mf.getOriginalFilename();
                    }
                };
            } catch (Exception e) {
                throw new RuntimeException(<span>"读取上传文件字节失败"</span>, e);
            }
            form.add(<span>"file"</span>, resource);
        }

        HttpEntity<MultiValueMap<String, Object>> request = new HttpEntity<>(form, getMultipartHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.POST, request, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());

        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow上传文档失败："</span> + Objects.toString(msg,<span>"未知错误"</span>));
        }
        JSONArray dataArray = json.getJSONArray(<span>"data"</span>);
        List<RagDocument> resultList = new ArrayList<>();

        <span>for</span> (int i = 0; i < dataArray.size(); i++) {
            JSONObject item = dataArray.getJSONObject(i);
            RagDocument ragDoc = new RagDocument();

            // ✅ RagFlow文档ID直接存入主键<span>id</span>
            ragDoc.setId(item.getString(<span>"id"</span>));
            // 知识库<span>id</span>
            ragDoc.setKbId(datasetId);
            //文档名称
            ragDoc.setDocName(item.getString(<span>"name"</span>));
            //文件大小，字节
            Long size = item.getLong(<span>"size"</span>);
            ragDoc.setFileSize(size);
            //pdf页数
            Long pageCount = item.getLong(<span>"page_count"</span>);
            ragDoc.setPageCount(pageCount);
            //来源 <span>local</span>本地上传
            ragDoc.setSource(<span>"local"</span>);
            //上传完成未启动解析，待解析
            ragDoc.setParseStatus(0);  //0待解析 1解析中 2解析成功 3解析失败
            ragDoc.setIsEnable(<span>"Y"</span>);
            ragDoc.setDelFlag(<span>"0"</span>);

            //截取文件后缀作为docType
            String fileName = item.getString(<span>"name"</span>);
            <span>if</span>(fileName != null && fileName.contains(<span>"."</span>)){
                String suffix = fileName.substring(fileName.lastIndexOf(<span>"."</span>)+1).toLowerCase();
                ragDoc.setDocType(suffix);
            }
            resultList.add(ragDoc);
        }
        <span>return</span> resultList;
    }

    /**
     * <span>type</span>=web 抓取网页生成文档
     * @param datasetId 知识库<span>id</span>
     * @param docName 文档名称
     * @param crawlUrl 网页地址
     * @<span>return</span> 文档<span>id</span>
     */
    public String uploadWebDocument(String datasetId, String docName, String crawlUrl) {
        <span>if</span>(datasetId == null || datasetId.isBlank()){
            throw new IllegalArgumentException(<span>"datasetId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/documents?type=web"</span>;

        MultiValueMap<String, Object> form = new LinkedMultiValueMap<>();
        form.add(<span>"name"</span>, docName);
        form.add(<span>"url"</span>, crawlUrl);

        HttpEntity<MultiValueMap<String, Object>> request = new HttpEntity<>(form, getMultipartHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.POST, request, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());

        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow抓取网页文档失败："</span> + Objects.toString(msg,<span>"未知错误"</span>));
        }
        JSONArray dataArray = json.getJSONArray(<span>"data"</span>);
        JSONObject item = dataArray.getJSONObject(0);
        <span>return</span> item.getString(<span>"id"</span>);
    }

    /**
     * 查询ragflow单文档信息，使用list接口带<span>id</span>过滤
     * @param datasetId 知识库dataset_id
     * @param docId ragflow文档<span>id</span>
     * @<span>return</span> null=ragflow侧还未生成该文档；返回JSONObject文档对象
     */
    public JSONObject getDocumentInfo(String datasetId, String docId) {
        <span>if</span>(StringUtils.isAnyBlank(datasetId,docId)){
            <span>return</span> null;
        }
        String encodeDocId = URLEncoder.encode(docId, StandardCharsets.UTF_8);
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/documents?id="</span> + encodeDocId + <span>"&page=1&page_size=1"</span>;

        HttpEntity<Void> httpEntity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp;
        try {
            resp = restTemplate.exchange(url, HttpMethod.GET, httpEntity, String.class);
        }catch (Exception e){
            <span>return</span> null;
        }
        JSONObject json = JSON.parseObject(resp.getBody());
        <span>if</span>(!Objects.equals(json.getInteger(<span>"code"</span>),0)){
            <span>return</span> null;
        }
        JSONObject dataObj = json.getJSONObject(<span>"data"</span>);
        JSONArray docsArr = dataObj.getJSONArray(<span>"docs"</span>);
        <span>if</span>(docsArr == null || docsArr.isEmpty()){
            <span>return</span> null;
        }
        <span>return</span> docsArr.getJSONObject(0);
    }

    /**
     * <span>type</span>=empty 创建空文档
     * @param datasetId 知识库<span>id</span>
     * @param docName 文档名称
     * @<span>return</span> 文档<span>id</span>
     */
    public String createEmptyDocument(String datasetId, String docName) {
        <span>if</span>(datasetId == null || datasetId.isBlank()){
            throw new IllegalArgumentException(<span>"datasetId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/documents?type=empty"</span>;

        Map<String,Object> body = new HashMap<>();
        body.put(<span>"name"</span>, docName);

        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.POST, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());

        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow创建空文档失败："</span> + Objects.toString(msg,<span>"未知错误"</span>));
        }
        JSONArray dataArray = json.getJSONArray(<span>"data"</span>);
        JSONObject item = dataArray.getJSONObject(0);
        <span>return</span> item.getString(<span>"id"</span>);
    }



    /**
     * 【内置分块流水线】启动文档解析（普通知识库绝大多数用这个）
     * POST /api/v1/datasets/{dataset_id}/chunks
     * @param datasetId 知识库<span>id</span>
     * @param docIdList document_ids列表
     */
    public void parseDocuments(String datasetId, List<String> docIdList) {
        <span>if</span>(StringUtils.isBlank(datasetId)){
            throw new IllegalArgumentException(<span>"datasetId不能为空"</span>);
        }
        <span>if</span>(docIdList == null || docIdList.isEmpty()){
            throw new IllegalArgumentException(<span>"文档id列表不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/chunks"</span>;
        Map<String,Object> body = new HashMap<>();
        body.put(<span>"document_ids"</span>, docIdList);

        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body),getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url,HttpMethod.POST,entity,String.class);
        JSONObject json = JSON.parseObject(resp.getBody());

        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span>(!Objects.equals(code,0)){
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow启动解析任务失败："</span>+ Objects.toString(msg,<span>"未知错误"</span>));
        }
    }

    /**
     * 停止解析（内置流水线）
     * DELETE /api/v1/datasets/{dataset_id}/chunks
     * @param datasetId
     * @param docIdList
     */
    public void stopParseDocuments(String datasetId, List<String> docIdList){
        <span>if</span>(StringUtils.isBlank(datasetId)){
            throw new IllegalArgumentException(<span>"datasetId不能为空"</span>);
        }
        <span>if</span>(docIdList == null || docIdList.isEmpty()){
            throw new IllegalArgumentException(<span>"文档id列表不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/chunks"</span>;
        Map<String,Object> body = new HashMap<>();
        body.put(<span>"document_ids"</span>, docIdList);

        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body),getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url,HttpMethod.DELETE,entity,String.class);
        JSONObject json = JSON.parseObject(resp.getBody());

        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span>(!Objects.equals(code,0)){
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow停止解析失败："</span>+ Objects.toString(msg,<span>"未知错误"</span>));
        }
    }

    /**
     * 删除知识库下的单个文档
     * DELETE /api/v1/datasets/{dataset_id}/documents
     * 注意：RAGFlow删除文档走的是集合路径（body传ids数组），单个文档路径不支持DELETE（会返回405）
     * @param datasetId 知识库<span>id</span>
     * @param docId 文档<span>id</span>
     */
    public void deleteDocument(String datasetId, String docId){
        <span>if</span>(StringUtils.isBlank(datasetId)){
            throw new IllegalArgumentException(<span>"datasetId不能为空"</span>);
        }
        <span>if</span>(StringUtils.isBlank(docId)){
            throw new IllegalArgumentException(<span>"文档id不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/documents"</span>;
        Map<String,Object> body = new HashMap<>();
        // 就算删一个，也要包进数组
        body.put(<span>"ids"</span>, List.of(docId));
        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.DELETE, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());

        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span>(!Objects.equals(code,0)){
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow删除文档失败："</span>+ Objects.toString(msg,<span>"未知错误"</span>));
        }
    }




    /**
     * Create chat assistant 创建聊天助手 POST /api/v1/chats
     * @param name 助手名称【必填】
     * @param icon <span>base64</span>头像，可以null
     * @param dataset_ids 绑定知识库uuid列表 List<String>，可以null
     * @param llm_id 模型<span>id</span>，可以null
     * @param llmSetting llm_setting对象，助手大模型推理参数配置，可以null
     *        llm_setting包含属性说明：
     *          <span>"model_type"</span>: string 模型类型标识，仅支持<span>"chat"</span>和<span>"image2text"</span>；不传或其他值默认当作<span>"chat"</span>。
     *          <span>"temperature"</span>: <span>float</span> 控制模型输出随机性，数值越低回答越保守，越高越有创造性，默认0.1。
     *          <span>"top_p"</span>: <span>float</span> 核采样阈值，从概率最高的词汇中做采样，截断低概率词汇，默认0.3。
     *          <span>"presence_penalty"</span>: <span>float</span> 存在惩罚，对对话中已出现过的词施加惩罚，减少内容重复，默认0.4。
     *          <span>"frequency_penalty"</span>: <span>float</span> 频率惩罚，降低高频重复用词倾向，默认0.7。
     * @param promptConfig prompt_config对象，用于定义大模型需要遵守的指令，可以null
     *        prompt_config包含属性说明：
     *          <span>"system"</span>: string 系统提示词内容。
     *          <span>"prologue"</span>: string 用户打开对话时展示的开场白。
     *          <span>"parameters"</span>: object[] 系统提示词中使用的自定义变量数组。注意：
     *              knowledge 为保留变量，代表检索出来的知识库片段；
     *              system内所有变量需要使用大括号包裹。
     *          <span>"empty_response"</span>: string 用户提问未检索到知识库内容时返回的兜底回答；留空则允许模型自由生成回答。
     *          <span>"quote"</span>: boolean 是否展示引用来源切片，默认<span>true</span>。
     *          <span>"tts"</span>: boolean 是否开启语音朗读TTS。
     *          <span>"refine_multiturn"</span>: boolean 是否开启多轮问题改写优化。
     *          <span>"use_kg"</span>: boolean 是否启用知识图谱检索。
     *          <span>"reasoning"</span>: boolean 是否开启模型推理思考模式。
     *          <span>"cross_languages"</span>: list[string] 跨语言检索支持的语言列表。
     *          <span>"web_search_provider"</span>: string 联网搜索服务商，可选值 <span>"tavily"</span>、<span>"querit"</span>，不传默认tavily。
     *          <span>"tavily_api_key"</span>: string Tavily联网搜索API密钥。
     *          <span>"querit_api_key"</span>: string Querit联网搜索API密钥，使用该参数时web_search_provider必须指定为querit。
     *          <span>"toc_enhance"</span>: boolean 是否开启目录增强检索（针对带目录长文档优化检索）。
     * @param similarityThreshold <span>float</span> 检索相似度阈值，可以null
     * @param vectorSimilarityWeight <span>float</span> 向量相似度权重，可以null
     * @param topN int 检索结果topN，可以null
     * @param topK int 检索结果topK，可以null
     * @param rerank_id 重排模型<span>id</span>，可以null
     * @<span>return</span> 返回RAGFlow返回完整data JSONObject，取出<span>id</span>即为chatAssistantId
     */

    public JSONObject createChatAssistant(String name,
                                          String icon,
                                          List<String> dataset_ids,
                                          String llm_id,
                                          RagChatBotLlmSetting llmSetting,
                                          RagChatBotPromptConfig promptConfig,
                                          Float similarityThreshold,
                                          Float vectorSimilarityWeight,
                                          Integer topN,
                                          Integer topK,
                                          String rerank_id) {
        <span>if</span>(StringUtils.isBlank(name)){
            throw new IllegalArgumentException(<span>"chat assistant name不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/chats"</span>;
        Map<String,Object> body = new HashMap<>();
        body.put(<span>"name"</span>, name);
        <span>if</span>(StringUtils.isNotBlank(icon)){
            body.put(<span>"icon"</span>, icon);
        }
        <span>if</span>(dataset_ids != null){
            body.put(<span>"dataset_ids"</span>, dataset_ids);
        }
        <span>if</span>(StringUtils.isNotBlank(llm_id)){
            body.put(<span>"llm_id"</span>, llm_id);
        }
        <span>if</span>(llmSetting != null ){
            body.put(<span>"llm_setting"</span>, llmSetting);
        }
        <span>if</span>(promptConfig != null){
            body.put(<span>"prompt_config"</span>, promptConfig);
        }
        <span>if</span>(similarityThreshold != null){
            body.put(<span>"similarity_threshold"</span>, similarityThreshold);
        }
        <span>if</span>(vectorSimilarityWeight != null){
            body.put(<span>"vector_similarity_weight"</span>, vectorSimilarityWeight);
        }
        <span>if</span>(topN != null){
            body.put(<span>"top_n"</span>, topN);
        }
        <span>if</span>(topK != null){
            body.put(<span>"top_k"</span>, topK);
        }
        <span>if</span>(StringUtils.isNotBlank(rerank_id)){
            body.put(<span>"rerank_id"</span>, rerank_id);
        }

        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.POST, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span>(!Objects.equals(code,0)){
            String msg = json.getString(<span>"message"</span>);
            String detail = Objects.toString(msg,<span>"未知错误"</span>);
            throw new RuntimeException(<span>"创建对话助手失败："</span> + detail + <span>"，返回完整响应："</span> + json);
        }
        <span>return</span> json.getJSONObject(<span>"data"</span>);
    }


    /**
     * Get chat assistant GET /api/v1/chats/{chatId} 查询单个助手
     * @param chatId chat助手<span>id</span>
     * @<span>return</span> data原始JSONObject
     */
    public JSONObject getChatAssistant(String chatId) {
        <span>if</span>(StringUtils.isBlank(chatId)){
            throw new IllegalArgumentException(<span>"chatId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/chats/"</span> + chatId;
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.GET, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span>(!Objects.equals(code,0)){
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow查询chat assistant失败："</span>+ Objects.toString(msg,<span>"未知错误"</span>));
        }
        <span>return</span> json.getJSONObject(<span>"data"</span>);
    }

    /**
     * Delete chat assistant DELETE /api/v1/chats/{chatId} 删除单个助手
     */
    public void deleteChatAssistant(String chatId) {
        <span>if</span>(StringUtils.isBlank(chatId)){
            throw new IllegalArgumentException(<span>"chatId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/chats/"</span> + chatId;
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.DELETE, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span>(!Objects.equals(code,0)){
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow删除chat assistant失败："</span>+ Objects.toString(msg,<span>"未知错误"</span>));
        }
    }

    /**
     * Delete chat assistants 批量删除助手 DELETE /api/v1/chats
     * @param ids 要删除chatId列表；如果deleteAll=<span>true</span>，ids传null
     * @param deleteAll 是否删除全部当前用户助手
     */
    public void batchDeleteChatAssistant(List<String> ids, Boolean deleteAll) {
        String url = baseUrl + <span>"/api/v1/chats"</span>;
        Map<String,Object> body = new HashMap<>();
        <span>if</span>(ids != null){
            body.put(<span>"ids"</span>, ids);
        }
        <span>if</span>(deleteAll != null){
            body.put(<span>"delete_all"</span>, deleteAll);
        }
        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.DELETE, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span>(!Objects.equals(code,0)){
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow批量删除chat assistant失败："</span>+ Objects.toString(msg,<span>"未知错误"</span>));
        }
    }

    /**
     * List chat assistants GET /api/v1/chats 查询助手列表
     * @param page 页码，null默认1
     * @param pageSize 每页大小，null默认30
     * @param orderby 排序字段 create_time / update_time
     * @param desc 是否降序 null默认<span>true</span>
     * @param keywords 名称模糊搜索
     * @param ownerIds 租户<span>id</span>过滤
     * @param <span>id</span> 精确chatId匹配
     * @param name 精确名称匹配
     * @<span>return</span> 返回完整返回体data对象，包含chats数组、total
     */
    public JSONObject listChatAssistant(Integer page,
                                        Integer pageSize,
                                        String orderby,
                                        Boolean desc,
                                        String keywords,
                                        List<String> ownerIds,
                                        String <span>id</span>,
                                        String name) {
        StringBuilder sb = new StringBuilder(baseUrl + <span>"/api/v1/chats?"</span>);
        <span>if</span>(page != null){
            sb.append(<span>"page="</span>).append(page).append(<span>"&"</span>);
        }
        <span>if</span>(pageSize != null){
            sb.append(<span>"page_size="</span>).append(pageSize).append(<span>"&"</span>);
        }
        <span>if</span>(StringUtils.isNotBlank(orderby)){
            sb.append(<span>"orderby="</span>).append(URLEncoder.encode(orderby, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        }
        <span>if</span>(desc != null){
            sb.append(<span>"desc="</span>).append(desc).append(<span>"&"</span>);
        }
        <span>if</span>(StringUtils.isNotBlank(keywords)){
            sb.append(<span>"keywords="</span>).append(URLEncoder.encode(keywords, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        }
        <span>if</span>(ownerIds != null && !ownerIds.isEmpty()){
            <span>for</span>(String oid : ownerIds){
                sb.append(<span>"owner_ids="</span>).append(URLEncoder.encode(oid, StandardCharsets.UTF_8)).append(<span>"&"</span>);
            }
        }
        <span>if</span>(StringUtils.isNotBlank(<span>id</span>)){
            sb.append(<span>"id="</span>).append(URLEncoder.encode(<span>id</span>, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        }
        <span>if</span>(StringUtils.isNotBlank(name)){
            sb.append(<span>"name="</span>).append(URLEncoder.encode(name, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        }
        //去掉末尾&
        String url = sb.toString();
        <span>if</span>(url.endsWith(<span>"&"</span>)){
            url = url.substring(0, url.length()-1);
        }

        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.GET, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span>(!Objects.equals(code,0)){
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow查询chat assistant列表失败："</span>+ Objects.toString(msg,<span>"未知错误"</span>));
        }
        <span>return</span> json.getJSONObject(<span>"data"</span>);
    }




    /**
     * 流式版本，stream=<span>true</span>，返回BufferedReader读取SSE原始行（移除Flux、WebClient）
     */
    public BufferedReader chatCompletionsV2Stream(String chatId,
                                                  List<Map<String, Object>> messages,
                                                  String llmId,
                                                  String sessionId) {
        <span>if</span> (StringUtils.isBlank(chatId)) {
            throw new IllegalArgumentException(<span>"chatId不能为空"</span>);
        }
        <span>if</span> (messages == null || messages.isEmpty()) {
            throw new IllegalArgumentException(<span>"messages对话消息列表不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/chat/completions"</span>;
        Map<String, Object> body = new HashMap<>();
        body.put(<span>"chat_id"</span>, chatId);
        body.put(<span>"stream"</span>, <span>true</span>);
        body.put(<span>"llm_id"</span>, llmId);
        body.put(<span>"messages"</span>, messages);
        body.put(<span>"pass_all_history_messages"</span>, <span>false</span>); // 已传完整messages，避免RAGFlow叠加自身会话历史导致每轮翻倍

        <span>if</span> (StringUtils.isNotBlank(sessionId)) {
            body.put(<span>"session_id"</span>, sessionId);
        }

        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        // 使用RestTemplate获取原生Response，不自动消费body
        ResponseEntity<org.springframework.core.io.Resource> respEntity = restTemplate.exchange(
                url,
                HttpMethod.POST,
                entity,
                org.springframework.core.io.Resource.class
        );

        HttpStatusCode statusCode = respEntity.getStatusCode();
        <span>if</span> (!statusCode.is2xxSuccessful()) {
            throw new RuntimeException(<span>"RAGFlow chatCompletionsV2Stream 调用异常，http状态码："</span> + statusCode.value());
        }

        org.springframework.core.io.Resource resource = respEntity.getBody();
        <span>if</span> (resource == null) {
            throw new RuntimeException(<span>"RAGFlow chatCompletionsV2Stream 返回body为空"</span>);
        }
        try {
            // 包装输入流为BufferedReader，UTF-8
            <span>return</span> new BufferedReader(new InputStreamReader(resource.getInputStream(), StandardCharsets.UTF_8));
        } catch (Exception e) {
            throw new RuntimeException(<span>"读取RAGFlow流式响应输入流失败"</span>, e);
        }
    }




    /**
     * 创建会话 POST /api/v1/chats/{chat_id}/sessions
     * @param chatId ragflow助手<span>id</span>
     * @param name 会话名称
     * @param userId 可选 用户自定义userId，可为null
     * @<span>return</span> 返回ragflow会话data对象，<span>id</span>字段为ragflow sessionId
     */
    public JSONObject createSession(String chatId, String name, String userId) {
        <span>if</span> (StringUtils.isBlank(chatId)) {
            throw new IllegalArgumentException(<span>"chatId不能为空"</span>);
        }
        <span>if</span> (StringUtils.isBlank(name)) {
            throw new IllegalArgumentException(<span>"会话name不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/chats/"</span> + chatId + <span>"/sessions"</span>;
        Map<String, Object> body = new HashMap<>();
        body.put(<span>"name"</span>, name);
        <span>if</span> (StringUtils.isNotBlank(userId)) {
            body.put(<span>"user_id"</span>, userId);
        }
        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.POST, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow创建会话失败："</span> + Objects.toString(msg, <span>"未知错误"</span>));
        }
        <span>return</span> json.getJSONObject(<span>"data"</span>);
    }



    /**
     * 查询助手会话列表 GET /api/v1/chats/{chat_id}/sessions
     * @param chatId 助手<span>id</span>
     * @param page 页码 默认1
     * @param pageSize 页大小 默认30
     * @param orderby 排序字段 create_time / update_time
     * @param desc 是否降序 默认<span>true</span>
     * @param name 会话名称过滤
     * @param sessionId 会话<span>id</span>精确匹配
     * @param userId 用户自定义userId过滤
     * @<span>return</span> JSONArray 会话数组
     */
    public JSONArray listSession(String chatId,
                                 Integer page,
                                 Integer pageSize,
                                 String orderby,
                                 Boolean desc,
                                 String name,
                                 String sessionId,
                                 String userId) {
        <span>if</span> (StringUtils.isBlank(chatId)) {
            throw new IllegalArgumentException(<span>"chatId不能为空"</span>);
        }
        StringBuilder sb = new StringBuilder(baseUrl + <span>"/api/v1/chats/"</span> + chatId + <span>"/sessions?"</span>);
        <span>if</span> (page != null) sb.append(<span>"page="</span>).append(page).append(<span>"&"</span>);
        <span>if</span> (pageSize != null) sb.append(<span>"page_size="</span>).append(pageSize).append(<span>"&"</span>);
        <span>if</span> (StringUtils.isNotBlank(orderby))
            sb.append(<span>"orderby="</span>).append(URLEncoder.encode(orderby, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        <span>if</span> (desc != null) sb.append(<span>"desc="</span>).append(desc).append(<span>"&"</span>);
        <span>if</span> (StringUtils.isNotBlank(name))
            sb.append(<span>"name="</span>).append(URLEncoder.encode(name, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        <span>if</span> (StringUtils.isNotBlank(sessionId))
            sb.append(<span>"id="</span>).append(URLEncoder.encode(sessionId, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        <span>if</span> (StringUtils.isNotBlank(userId))
            sb.append(<span>"user_id="</span>).append(URLEncoder.encode(userId, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        String url = sb.toString();
        <span>if</span> (url.endsWith(<span>"&"</span>)) {
            url = url.substring(0, url.length() - 1);
        }
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.GET, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow查询会话列表失败："</span> + Objects.toString(msg, <span>"未知错误"</span>));
        }
        <span>return</span> json.getJSONArray(<span>"data"</span>);
    }

    /**
     * 获取单个会话详情 GET /api/v1/chats/{chat_id}/sessions/{sessionId}
     * @param chatId 助手<span>id</span>
     * @param sessionId ragflow会话<span>id</span>
     * @<span>return</span> 会话data对象，包含messages历史消息
     */
    public JSONObject getSessionDetail(String chatId, String sessionId) {
        <span>if</span> (StringUtils.isAnyBlank(chatId, sessionId)) {
            throw new IllegalArgumentException(<span>"chatId、sessionId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/chats/"</span> + chatId + <span>"/sessions/"</span> + sessionId;
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.GET, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow获取会话详情失败："</span> + Objects.toString(msg, <span>"未知错误"</span>));
        }
        <span>return</span> json.getJSONObject(<span>"data"</span>);
    }

    /**
     * 更新消息点赞反馈 PUT /api/v1/chats/{chat_id}/sessions/{sessionId}/messages/{msgId}/feedback
     * @param chatId 助手<span>id</span>
     * @param sessionId 会话<span>id</span>
     * @param msgId ragflow消息<span>id</span>
     * @param thumbup <span>true</span>点赞 / <span>false</span>点踩
     * @param feedback 反馈文本，可为null
     * @<span>return</span> 更新后会话对象
     */
    public JSONObject messageFeedback(String chatId, String sessionId, String msgId, Boolean thumbup, String feedback) {
        <span>if</span> (StringUtils.isAnyBlank(chatId, sessionId, msgId) || thumbup == null) {
            throw new IllegalArgumentException(<span>"参数不全"</span>);
        }
        String url = baseUrl + <span>"/api/v1/chats/"</span> + chatId + <span>"/sessions/"</span> + sessionId + <span>"/messages/"</span> + msgId + <span>"/feedback"</span>;
        Map<String, Object> body = new HashMap<>();
        body.put(<span>"thumbup"</span>, thumbup);
        <span>if</span> (StringUtils.isNotBlank(feedback)) {
            body.put(<span>"feedback"</span>, feedback);
        }
        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.PUT, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow设置消息反馈失败："</span> + Objects.toString(msg, <span>"未知错误"</span>));
        }
        <span>return</span> json.getJSONObject(<span>"data"</span>);
    }

    /**
     * 批量删除会话 DELETE /api/v1/chats/{chat_id}/sessions
     * @param chatId 助手<span>id</span>
     * @param ids 需要删除的sessionId列表；可为null
     * @param deleteAll 是否删除全部会话  为<span>true</span>时  ids写null
     */
    public void batchDeleteSession(String chatId, List<String> ids, Boolean deleteAll) {
        <span>if</span> (StringUtils.isBlank(chatId)) {
            throw new IllegalArgumentException(<span>"chatId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/chats/"</span> + chatId + <span>"/sessions"</span>;
        Map<String, Object> body = new HashMap<>();
        <span>if</span> (ids != null && !ids.isEmpty()) {
            body.put(<span>"ids"</span>, ids);
        }
        <span>if</span> (deleteAll != null) {
            body.put(<span>"delete_all"</span>, deleteAll);
        }
        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.DELETE, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow批量删除会话失败："</span> + Objects.toString(msg, <span>"未知错误"</span>));
        }
    }

    /**
     * 向量检索接口 POST /api/v1/retrieval
     * @param question 用户问题
     * @param datasetIds 知识库<span>id</span>列表，二选一 datasetIds / documentIds
     * @param documentIds 文档<span>id</span>列表
     * @param page 页码 默认1
     * @param pageSize 每页数量 默认30
     * @param similarityThreshold 相似度阈值
     * @param vectorSimilarityWeight 向量权重
     * @param topK topK
     * @param rerankId 重排模型<span>id</span>
     * @param keyword 是否开启关键词检索
     * @param highlight 是否高亮
     * @param crossLanguages 跨语言列表
     * @param metadataCondition 元数据过滤条件，可为null
     * @param useKg 是否启用知识图谱
     * @param tocEnhance 是否目录增强
     * @<span>return</span> 返回检索data对象，包含chunks、doc_aggs、total
     */
    public JSONObject retrievalChunks(String question,
                                      List<String> datasetIds,
                                      List<String> documentIds,
                                      Integer page,
                                      Integer pageSize,
                                      Float similarityThreshold,
                                      Float vectorSimilarityWeight,
                                      Integer topK,
                                      String rerankId,
                                      Boolean keyword,
                                      Boolean highlight,
                                      List<String> crossLanguages,
                                      Map<String, Object> metadataCondition,
                                      Boolean useKg,
                                      Boolean tocEnhance) {
        <span>if</span> (StringUtils.isBlank(question)) {
            throw new IllegalArgumentException(<span>"question不能为空"</span>);
        }
        <span>if</span> ((datasetIds == null || datasetIds.isEmpty()) && (documentIds == null || documentIds.isEmpty())) {
            throw new IllegalArgumentException(<span>"datasetIds 和 documentIds至少传一组"</span>);
        }
        String url = baseUrl + <span>"/api/v1/retrieval"</span>;
        Map<String, Object> body = new HashMap<>();
        body.put(<span>"question"</span>, question);
        <span>if</span> (datasetIds != null) body.put(<span>"dataset_ids"</span>, datasetIds);
        <span>if</span> (documentIds != null) body.put(<span>"document_ids"</span>, documentIds);
        <span>if</span> (page != null) body.put(<span>"page"</span>, page);
        <span>if</span> (pageSize != null) body.put(<span>"page_size"</span>, pageSize);
        <span>if</span> (similarityThreshold != null) body.put(<span>"similarity_threshold"</span>, similarityThreshold);
        <span>if</span> (vectorSimilarityWeight != null) body.put(<span>"vector_similarity_weight"</span>, vectorSimilarityWeight);
        <span>if</span> (topK != null) body.put(<span>"top_k"</span>, topK);
        <span>if</span> (StringUtils.isNotBlank(rerankId)) body.put(<span>"rerank_id"</span>, rerankId);
        <span>if</span> (keyword != null) body.put(<span>"keyword"</span>, keyword);
        <span>if</span> (highlight != null) body.put(<span>"highlight"</span>, highlight);
        <span>if</span> (crossLanguages != null) body.put(<span>"cross_languages"</span>, crossLanguages);
        <span>if</span> (metadataCondition != null) body.put(<span>"metadata_condition"</span>, metadataCondition);
        <span>if</span> (useKg != null) body.put(<span>"use_kg"</span>, useKg);
        <span>if</span> (tocEnhance != null) body.put(<span>"toc_enhance"</span>, tocEnhance);

        HttpEntity<String> entity = new HttpEntity<>(JSON.toJSONString(body), getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.POST, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        Integer code = json.getInteger(<span>"code"</span>);
        <span>if</span> (!Objects.equals(code, 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow向量检索失败："</span> + Objects.toString(msg, <span>"未知错误"</span>));
        }
        <span>return</span> json.getJSONObject(<span>"data"</span>);
    }

    /**
     * 生成相关推荐问题 POST /api/v1/chat/recommandation
     * 注意：该接口需要login‑token，不是api‑key；本客户端暂不封装鉴权逻辑，业务层按需调用
     * @param question 用户原始问题
     * @param searchId 搜索配置<span>id</span>，可为null
     * @<span>return</span> 推荐问题字符串数组
     */
    public JSONArray generateRelatedQuestions(String question, String searchId) {
        throw new UnsupportedOperationException(<span>"generateRelatedQuestions需要登录token，不是api‑key，业务层自行处理header鉴权"</span>);
    }

    /**
     * 下载附件 GET /api/v1/agents/attachments/{attachmentId}/download
     * @param attachmentId 附件<span>id</span>
     * @param ext 输出格式 markdown/html/pdf/docx/xlsx/csv
     * @<span>return</span> byte[] 文件二进制
     */
    public byte[] downloadAttachment(String attachmentId, String ext) {
        <span>if</span> (StringUtils.isBlank(attachmentId)) {
            throw new IllegalArgumentException(<span>"attachmentId不能为空"</span>);
        }
        StringBuilder sb = new StringBuilder(baseUrl + <span>"/api/v1/agents/attachments/"</span> + attachmentId + <span>"/download?"</span>);
        <span>if</span> (StringUtils.isNotBlank(ext)) {
            sb.append(<span>"ext="</span>).append(URLEncoder.encode(ext, StandardCharsets.UTF_8));
        }
        String url = sb.toString();
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<byte[]> resp = restTemplate.exchange(url, HttpMethod.GET, entity, byte[].class);
        <span>return</span> resp.getBody();
    }


    /**
     * 获取模型列表 GET /api/v1/models【DTO强类型版本】
     * @param modelType 可选过滤：embedding / chat / rerank / tts / vision，传null返回全部
     * @<span>return</span> RagFlowModelListResp
     */
    public RagFlowModelListResp listModels(String modelType,String instanceName,String providerName,String name) {
        StringBuilder sb = new StringBuilder(baseUrl + <span>"/api/v1/models?t=1"</span>);

        <span>if</span> (StringUtils.isNotBlank(modelType)) {
            sb.append(<span>"&model_type="</span>).append(URLEncoder.encode(modelType, StandardCharsets.UTF_8));
        }
        <span>if</span> (StringUtils.isNotBlank(instanceName)) {
            sb.append(<span>"&instance_name="</span>).append(URLEncoder.encode(instanceName, StandardCharsets.UTF_8));
        }
        <span>if</span> (StringUtils.isNotBlank(providerName)) {
            sb.append(<span>"&provider_name="</span>).append(URLEncoder.encode(providerName, StandardCharsets.UTF_8));
        }
        <span>if</span> (StringUtils.isNotBlank(name)) {
            sb.append(<span>"&name="</span>).append(URLEncoder.encode(name, StandardCharsets.UTF_8));
        }
        String url = sb.toString();

        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.GET, entity, String.class);
        RagFlowModelListResp result = JSON.parseObject(resp.getBody(), RagFlowModelListResp.class);

        <span>if</span> (!Objects.equals(result.getCode(), 0)) {
            String msg = result.getMessage();
            throw new RuntimeException(<span>"RAGFlow查询模型列表失败："</span> + Objects.toString(msg, <span>"未知错误"</span>));
        }
        <span>return</span> result;
    }

    /**
     * 查询ragFlow中用户配置的llm模型<span>id</span>
     * @<span>return</span>
     */
    public String <span><span>getUserLLMId</span></span>() {
        RagFlowUserMeModels po = getUserMeModelsDto();
        RagFlowUserMeModels.UserMeModelData data = po.getData();
        <span>return</span> data.getTenantLlmId();
    }

    //==================== 引用展示：切片图片 / 文档缩略图 / 文档预览 / 原文件下载 ====================

    /**
     * 获取切片图片（也用于文档缩略图，二者都是 image_id 形态）
     * GET /api/v1/documents/images/{imageId}
     * 说明：imageId 形如 <span>"{dataset_id}-{chunk_id}"</span> 或 <span>"{dataset_id}-thumbnail_{doc_id}.png"</span>
     * @param imageId ragflow image_id
     * @<span>return</span> 图片字节
     */
    public byte[] getChunkImage(String imageId) {
        <span>if</span> (StringUtils.isBlank(imageId)) {
            throw new IllegalArgumentException(<span>"imageId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/documents/images/"</span> + imageId;
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<byte[]> resp = restTemplate.exchange(url, HttpMethod.GET, entity, byte[].class);
        <span>return</span> resp.getBody();
    }

    /**
     * 批量查询文档缩略图 GET /api/v1/thumbnails?doc_ids=a&doc_ids=b
     * RAGFlow返回：{<span>"code"</span>:0,<span>"data"</span>:{<span>"docId"</span>:<span>"/api/v1/documents/images/{dataset_id}-thumbnail_{doc_id}.png"</span>或<span>""</span>}}
     * 本方法把缩略图URL收敛成 image_id（最后一个路径段），空串表示该文档无缩略图（如doc/xlsx）
     * @param docIds 文档<span>id</span>列表
     * @<span>return</span> docId -> thumbnailImageId（可能为空串）
     */
    public Map<String, String> getDocumentThumbnails(List<String> docIds) {
        <span>if</span> (docIds == null || docIds.isEmpty()) {
            <span>return</span> new HashMap<>();
        }
        StringBuilder sb = new StringBuilder(baseUrl + <span>"/api/v1/thumbnails?"</span>);
        <span>for</span> (String docId : docIds) {
            <span>if</span> (StringUtils.isBlank(docId)) {
                <span>continue</span>;
            }
            sb.append(<span>"doc_ids="</span>).append(URLEncoder.encode(docId, StandardCharsets.UTF_8)).append(<span>"&"</span>);
        }
        String url = sb.substring(0, sb.length() - 1);

        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.GET, entity, String.class);
        JSONObject json = JSON.parseObject(resp.getBody());
        <span>if</span> (!Objects.equals(json.getInteger(<span>"code"</span>), 0)) {
            String msg = json.getString(<span>"message"</span>);
            throw new RuntimeException(<span>"RAGFlow查询文档缩略图失败："</span> + Objects.toString(msg, <span>"未知错误"</span>));
        }
        JSONObject dataObj = json.getJSONObject(<span>"data"</span>);
        Map<String, String> result = new HashMap<>();
        <span>if</span> (dataObj != null) {
            <span>for</span> (String docId : dataObj.keySet()) {
                String thumbUrl = dataObj.getString(docId);
                <span>if</span> (StringUtils.isBlank(thumbUrl)) {
                    result.put(docId, <span>""</span>);
                    <span>continue</span>;
                }
                // 形如 /api/v1/documents/images/xxx-thumbnail_yyy.png → 取最后一段作为image_id
                int idx = thumbUrl.lastIndexOf(<span>'/'</span>);
                result.put(docId, idx >= 0 ? thumbUrl.substring(idx + 1) : thumbUrl);
            }
        }
        <span>return</span> result;
    }

    /**
     * 获取文档预览流（PDF返回application/pdf可直接渲染；doc/xlsx/ppt返回原始文件字节）
     * GET /api/v1/documents/{documentId}/preview
     * @param documentId ragflow文档<span>id</span>
     * @<span>return</span> 原始响应（含Content-Type），业务层按类型决定 inline / attachment
     */
    public ResponseEntity<byte[]> getDocumentPreviewResponse(String documentId) {
        <span>if</span> (StringUtils.isBlank(documentId)) {
            throw new IllegalArgumentException(<span>"documentId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/documents/"</span> + documentId + <span>"/preview"</span>;
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        <span>return</span> restTemplate.exchange(url, HttpMethod.GET, entity, byte[].class);
    }

    /**
     * GET /api/v1/users/me/models
     * 获取当前API Key所属租户的模型配置信息【DTO强类型版本】
     * @<span>return</span> RagFlowUserMeModelResp 完整返回实体
     */
    public RagFlowUserMeModels <span><span>getUserMeModelsDto</span></span>() {
        String url = baseUrl + <span>"/api/v1/users/me/models"</span>;
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        ResponseEntity<String> resp = restTemplate.exchange(url, HttpMethod.GET, entity, String.class);
        // fastjson2 直接转DTO
        RagFlowUserMeModels result = JSON.parseObject(resp.getBody(), RagFlowUserMeModels.class);
        <span>if</span> (!Objects.equals(result.getCode(), 0)) {
            String msg = result.getMessage();
            throw new RuntimeException(<span>"RAGFlow获取租户模型配置失败："</span> + Objects.toString(msg,<span>"未知错误"</span>));
        }
        <span>return</span> result;
    }

    /**
     * 下载原文档 GET /api/v1/datasets/{datasetId}/documents/{documentId}
     * @param datasetId 知识库<span>id</span>
     * @param documentId 文档<span>id</span>
     * @<span>return</span> 原始响应（含Content-Type），业务层按 attachment 处理
     */
    public ResponseEntity<byte[]> downloadDocumentResponse(String datasetId, String documentId) {
        <span>if</span> (StringUtils.isAnyBlank(datasetId, documentId)) {
            throw new IllegalArgumentException(<span>"datasetId、documentId不能为空"</span>);
        }
        String url = baseUrl + <span>"/api/v1/datasets/"</span> + datasetId + <span>"/documents/"</span> + documentId;
        HttpEntity<Void> entity = new HttpEntity<>(null, getHeader());
        <span>return</span> restTemplate.exchange(url, HttpMethod.GET, entity, byte[].class);
    }
}

3.4 Controller 层：权限校验（参考代码）

/**
     * 查询RAG知识库管理列表（本人创建 + 开放授权可见，非本人不可改删由 isOwner/canEdit 标记控制）
     */
    @PreAuthorize(<span>"@ss.hasPermi('rag:knowledgeBase:list')"</span>)
    @GetMapping(<span>"/list"</span>)
    public TableDataInfo list(RagKnowledgeBase ragKnowledgeBase)
    {
        // 可见范围过滤（核心权限方法）
        ragKnowledgeBase.setVisibleIds(ragKnowledgeBaseService.selectVisibleKbIds());
        startPage();
        List<RagKnowledgeBase> list = ragKnowledgeBaseService.selectRagKnowledgeBaseList(ragKnowledgeBase);

        <span>if</span>(list != null){
            RagFlowUserMeModels po = ragFlowApiClient.getUserMeModelsDto();
            Map<String, String> modelItems = getModelItems(po);

            String currentUser = SecurityUtils.getUsername();
            <span>for</span> (RagKnowledgeBase base : list) {
                base.setEmbeddingModelName(modelItems.get(base.getEmbeddingModel()));
                // 权限标记：本人创建的可改删，授权可见的仅查看
                boolean owner = currentUser.equals(base.getCreateBy());
                base.setIsOwner(owner);
                base.setCanEdit(owner);
            }
        }

        <span>return</span> getDataTable(list);
    }

关键设计：浏览器不直接访问 RAGFlow，所有请求经若依后端代理——既解决跨域，又避免 RAGFlow 的 Token 暴露到前端，权限校验也统一在若依这一层完成。

四、总结

本在开发层面介绍了若依集成ragFlow的设计实现思路：

1. RAGFlow 私有化部署：无 GPU 环境可跑，模型走 OpenAI 兼容 API 可插拔，生产可平滑替换本地模型；
2. 8 个功能模块：模型、知识库、文档、提示词、助手、会话、问答，职责清晰、表结构完整；
3. 五种开放范围权限：私有 / 公开 / 指定用户 / 指定部门 / 指定角色，配合若依数据权限，真正实精准的权限管控；
4. Java 对接 RAGFlow：安全与权限统一收敛在若依层，我贴了一些有参考价值的代码，主要为了展示设计思路，具体实现那就见仁见智了。
